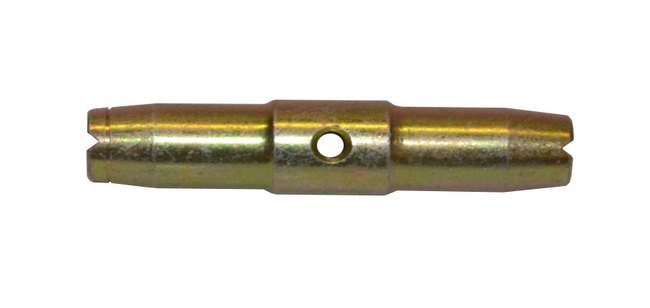

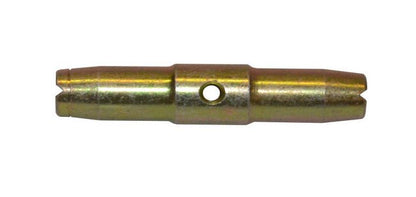

MS21251 Cad-Plated Carbon Steel Turnbuckle Body
MS21251 Cad-Plated Carbon Steel Turnbuckle Body
SKU:WIR-dff178
High-strength MS21251 Cad-Plated Carbon Steel Turnbuckle Body for secure wire rope connections. Equivalent to NAS649.
Regular price
$15.99
Regular price
Sale price
$15.99
Unit price
per
Initiate Order
MS21251 Cad-Plated Carbon Steel Turnbuckle Body
$15.99
Quantity: 1
Claim Your Seller Account
MS21251 Cad-Plated Carbon Steel Turnbuckle Body
$15.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The MS21251 Cad-Plated Carbon Steel Turnbuckle Body, equivalent to NAS649, is designed to meet the stringent requirements of wire rope applications. With a Mil Spec of MS21251, this turnbuckle features a Wire Rope Diameter of 5/32" and a high break strength of 3,200 lbs. The precise dimensions ensure a perfect fit for UNF-38 threaded connections, making it ideal for applications demanding reliability and durability.

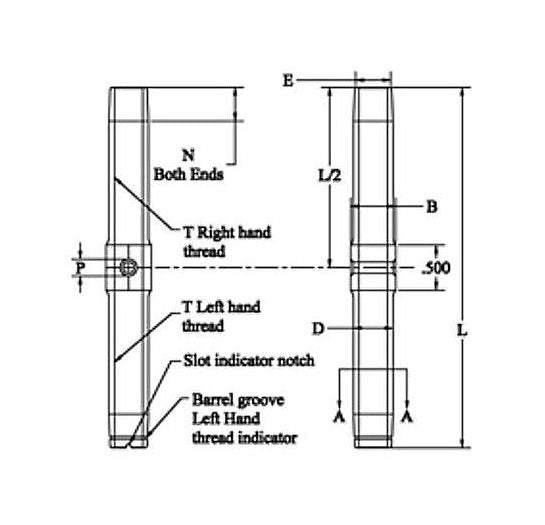

Product Specifications
Specifications Appl Cable Locking Clip Ms21256
-2
Specifications B 005 Dia
.438
Specifications D 005 Dia
.391
Specifications E 005 Dia
.328
Specifications Lbs Per Piece
.097
Specifications L 031
4.000
Specifications Mbs Lbs
3,200
Specifications Mil Spec
MS21251
Specifications N 031
.312
Specifications P 005
.125
Specifications Thread T Unf 38
1/4-28
Specifications Wire Rope Dia
5/32
CAGE
0T9L4
NAICS
332510
PSC
4030
