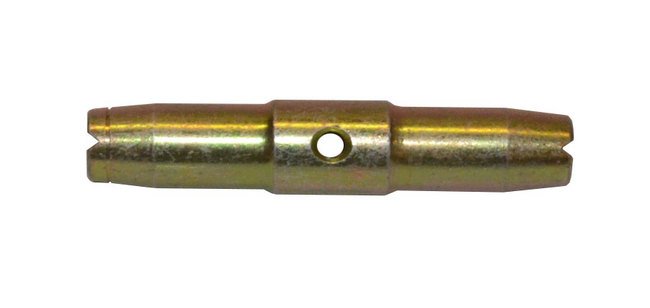

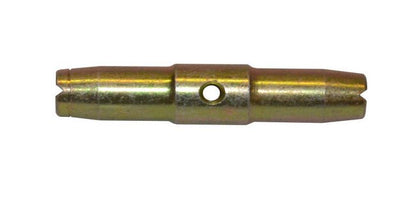

MS21251 Cad-Plated Carbon Steel Turnbuckle Body

Name: MS21251 Cad-Plated Carbon Steel Turnbuckle Body
Brand: Lexco Cable Manufacturing
SKU: MIL-dfefd5
Price: 29.99 USD
Availability: OutOfStock

SKU:MIL-dfefd5

High-quality MS21251 Cad-Plated Carbon Steel Turnbuckle Body for military applications. Equivalent to NAS649. Meets stringent military standards.

$29.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The MS21251 Cad-Plated Carbon Steel Turnbuckle Body, equivalent to NAS649, is designed to meet stringent military specifications. With a Wire Rope Diameter of 3/16 and a Minimum Breaking Strength of 4,600 lbs, this turnbuckle body ensures robust performance. Its precise dimensions and application compatibility with Cable Locking Clip MS21256 make it a reliable choice for diverse military applications.

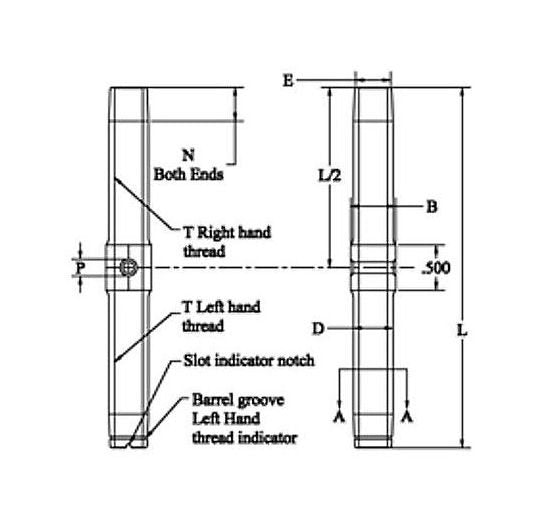

Product Specifications

Specifications Appl Cable Locking Clip Ms21256

-2

Specifications B 005 Dia

.500

Specifications D 005 Dia

.438

Specifications E 005 Dia

.406

Specifications Lbs Per Piece

.106

Specifications L 031

4.000

Specifications Mbs Lbs

4,600

Specifications Mil Spec

MS21251

Specifications N 031

.375

Specifications P 005

.125

Specifications Thread T Unf 38

5/16-24

Specifications Wire Rope Dia

3/16

CAGE

0T9L4

NAICS

332510

PSC

4030

MS21251 Cad-Plated Carbon Steel Turnbuckle Body
