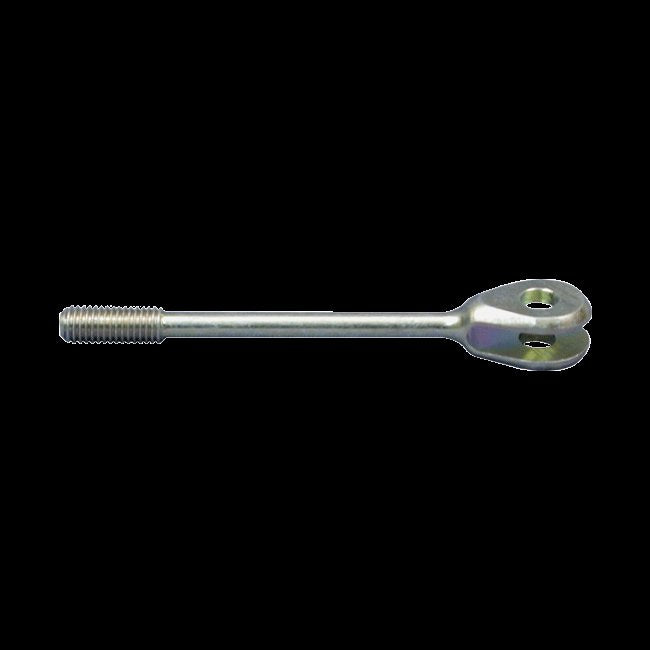

MS21252C Clevis Turnbuckle Clip Locking

MS21252C Clevis Turnbuckle Clip Locking

SKU:MIL-5e615f

High-performance MS21252C Clevis Turnbuckle Clip Locking. NAS 645 & AN 161 replacements. Wire Rope Dia. Ref: 3/16, MBS: 4,600 lbs, Thread T UNF-3A: 5/16-24.

Regular price $49.99
Regular price Sale price $49.99
Sale

Initiate Order

MS21252C Clevis Turnbuckle Clip Locking

MS21252C Clevis Turnbuckle Clip Locking

$49.99

Quantity: 1

Claim Your Seller Account

MS21252C Clevis Turnbuckle Clip Locking

MS21252C Clevis Turnbuckle Clip Locking

$49.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

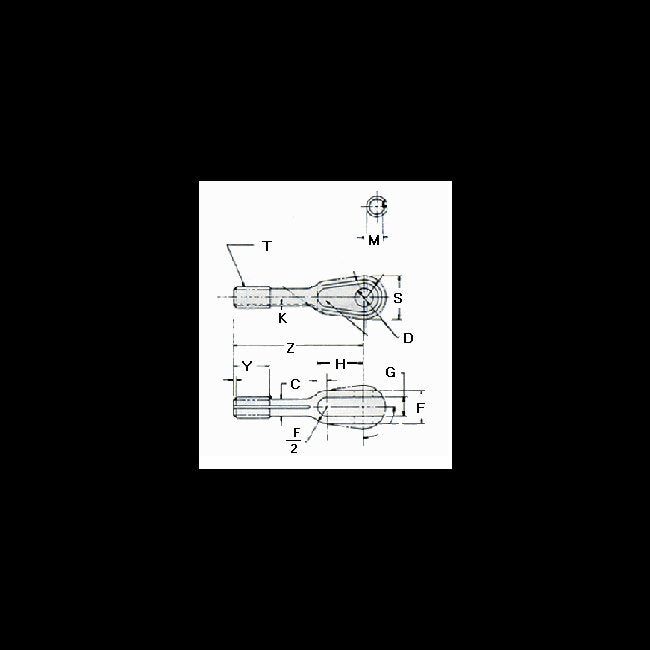

The MS21252C Clevis Turnbuckle Clip Locking is a military specification product designed to meet the highest standards for durability and reliability. With a Wire Rope Dia. Ref of 3/16 and a MBS of 4,600 lbs, this turnbuckle ensures secure fastening in demanding applications. The threaded T UNF-3A feature (5/16-24) allows for precise adjustments, while the robust construction of dimensions C, D, F, G, H, K, M, S, Y, and Z ensures steadfast performance. Compliant with NAS 645 and AN 161 replacements, this clevis turnbuckle is the ideal choice for military-grade applications.

Product Specifications

Specifications C 006 000 Diain
.243
Specifications D 002 000 Diain
.313
Specifications F 010 005
.547
Specifications G 010 000
.250
Specifications H
.656
Specifications K Max
.0064
Specifications Mbs Lbs
4,600
Specifications M Max
.2830
Specifications M Min
.2754
Specifications Nsn
N/A
Specifications S Spher Dia
.734
Specifications Thread T Unf 3a
5/16-24
Specifications Wire Rope Dia Ref
3/16
Specifications Y 047
.750
Specifications Z 047
2.031
CAGE
0T9L4
NAICS
332999
PSC
5340
