MS21252C Clevis Turnbuckle Clip Locking
MS21252C Clevis Turnbuckle Clip Locking
SKU:MIL-767d54
High-strength MS21252C Clevis Turnbuckle Clip Locking meeting military specifications for secure fastening in demanding applications.
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

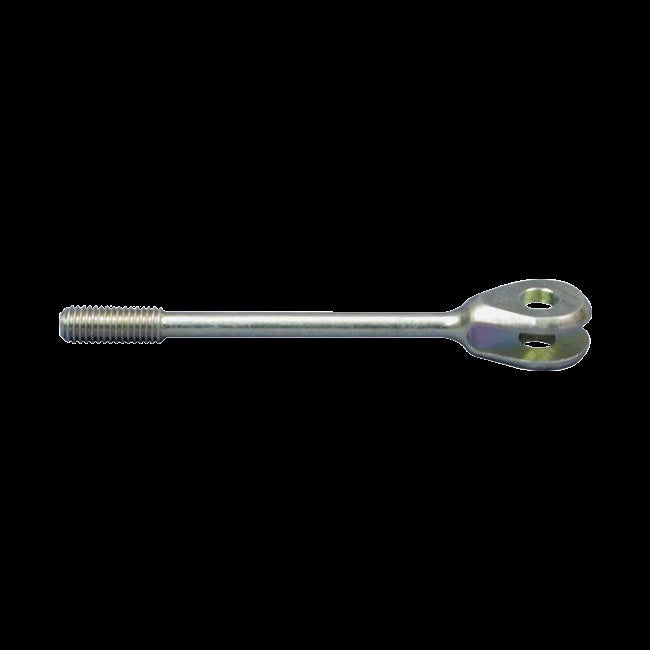

The MS21252C Clevis Turnbuckle Clip Locking is a military specification product designed to meet rigorous institutional procurement standards. This high-strength clevis features a Wire Rope Dia. Ref of 5/16", MBS of 17,500 lbs, and precise dimensions to ensure secure fastening. Replacing the outdated AN 161, this turnbuckle offers reliability and durability in demanding applications. Trust in its performance for your government or military procurement needs.

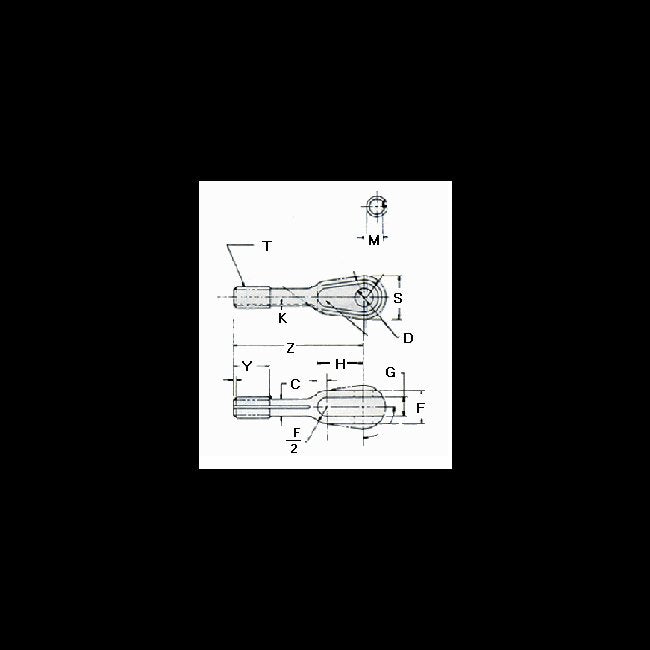

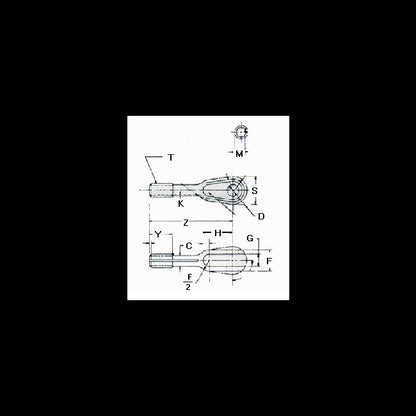

Product Specifications
Specifications C 006 000 Diain
.425
Specifications D 002 000 Diain
.500
Specifications F 010 005
.844
Specifications G 010 000
.437
Specifications H
1.188
Specifications K Max
.0058
Specifications Mbs Lbs
17,500
Specifications M Max
.4678
Specifications M Min
.4597
Specifications Nsn
N/A
Specifications S Spher Dia
1.219
Specifications Thread T Unf 3a
1/2-20
Specifications Wire Rope Dia Ref
5/16
Specifications Y 047
1.000
Specifications Z 047
3.688
CAGE
0T9L4
NAICS
332999
PSC
5340
