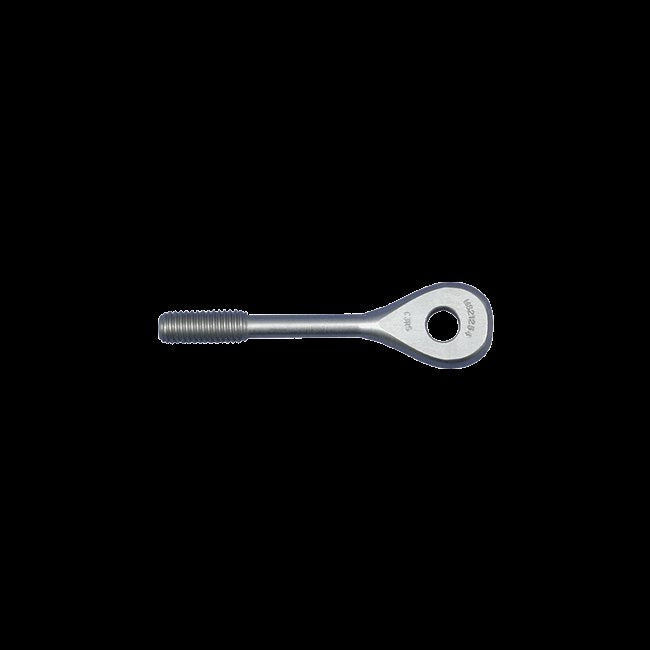

MS21254C Stainless Steel Eye End Turnbuckle Clip Locking
MS21254C Stainless Steel Eye End Turnbuckle Clip Locking
SKU:MIL-facb37
High-strength military-grade stainless steel turnbuckle for secure fastening in demanding applications.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.


The MS21254C Stainless Steel Eye End Turnbuckle Clip Locking is a military specification product designed to replace AN 165. With a Wire Rope Dia Ref. of 5/32 and a MBS of 3,200 lbs, this turnbuckle ensures high tensile strength and durability. Featuring precise technical specifications like Thread T UNF-3A 1/4-28 and C +.006 -.000 Dia. of .189 inches, this turnbuckle meets stringent government procurement standards, including Federal/DoD, GSA requirements, and FAR compliance factors.

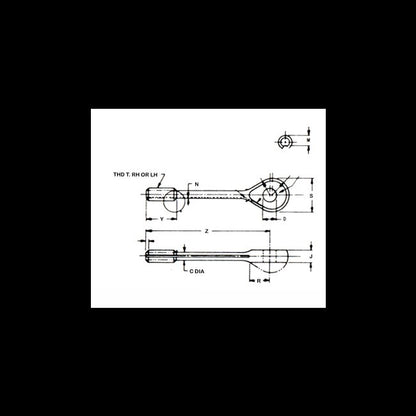

Product Specifications
Specifications C 006 000 Diain
.189
Specifications D 002 000 Diain
.250
Specifications J 005
.219
Specifications Mbs Lbs
3,200
Specifications M Max
.2224
Specifications M Min
.2152
Specifications N Max
.0103
Specifications S Dia
.625
Specifications Thread T Unf 3a
1/4-28
Specifications Wire Rope Dia Ref
5/32
Specifications Y 047 In
.625
Specifications Z 031 015
1.750
CAGE
0T9L4
NAICS
332999
PSC
5340
