MS21254C Stainless Steel Turnbuckle Clip Locking (For Pin) - Military Spec

MS21254C Stainless Steel Turnbuckle Clip Locking (For Pin) - Military Spec

SKU:MIL-65bac8

Enhance military operations with the MS21254C Stainless Steel Turnbuckle Clip Locking, offering durability and reliability in a compact design.

Regular price $24.99
Regular price Sale price $24.99
Sale

Initiate Order

MS21254C Stainless Steel Turnbuckle Clip Locking (For Pin) - Military Spec

MS21254C Stainless Steel Turnbuckle Clip Locking (For Pin) - Military Spec

$24.99

Quantity: 1

Claim Your Seller Account

MS21254C Stainless Steel Turnbuckle Clip Locking (For Pin) - Military Spec

MS21254C Stainless Steel Turnbuckle Clip Locking (For Pin) - Military Spec

$24.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The MS21254C Stainless Steel Turnbuckle Clip Locking is designed to meet the stringent requirements of military applications. This clip, equivalent to NAS 648 and replacing AN 165, ensures superior durability and reliability. With a Wire Rope Dia Ref. of 3/32, MBS of 1,600 lbs, and precise dimensions conforming to Thread T UNF-3A standards, this turnbuckle clip delivers unmatched performance. It features corrosion-resistant stainless steel construction, a high MBS rating, and precise dimensional accuracy, making it ideal for mission-critical operations.

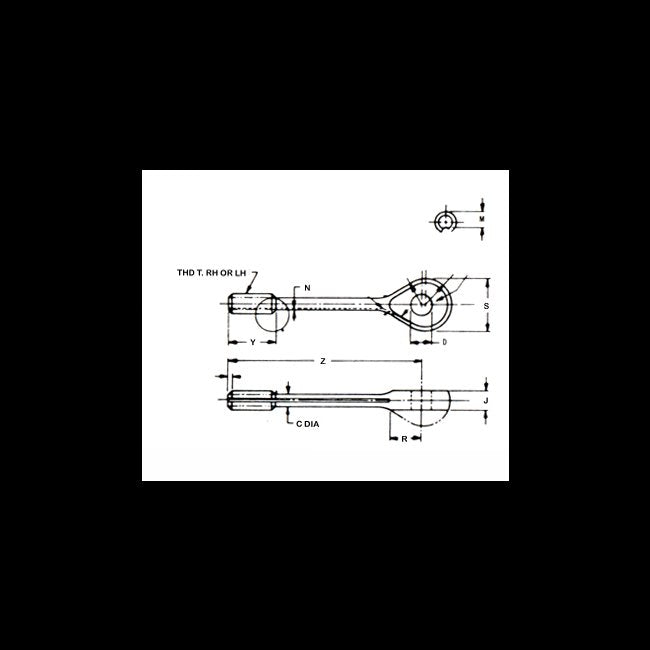

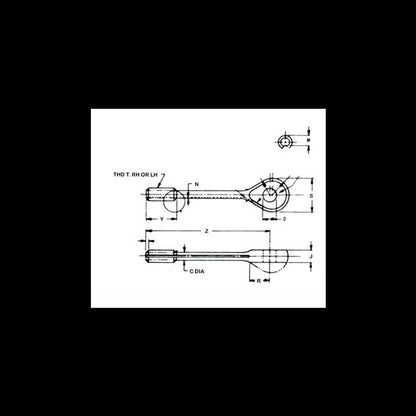

Product Specifications

Specifications C 006 000 Diain
.133
Specifications D 002 000 Diain
.190
Specifications J 005
.188
Specifications Mbs Lbs
1,600
Specifications M Max
.1638
Specifications M Min
.1568
Specifications N Max
.0077
Specifications S Dia
.500
Specifications Thread T Unf 3a
10-32
Specifications Wire Rope Dia Ref
3/32
Specifications Y 047 In
.500
Specifications Z 031 015
2.500
CAGE
0T9L4
NAICS
332999
PSC
5340
