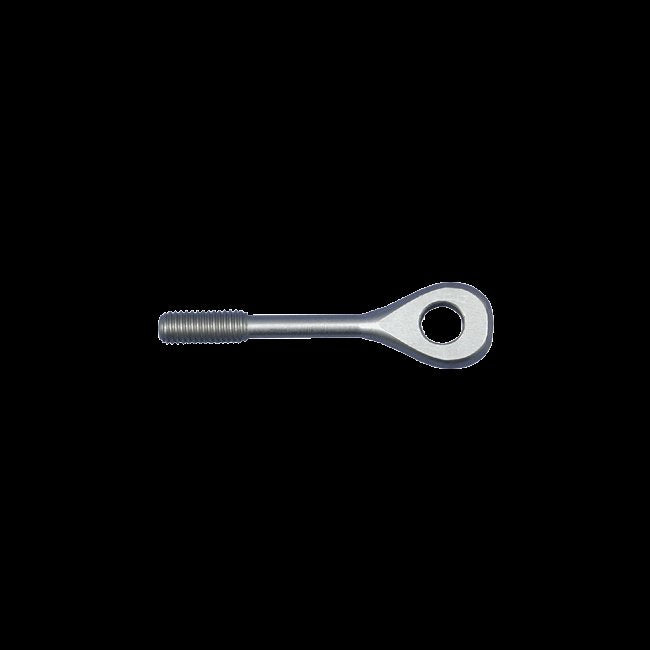

MS21255C Stainless Steel Turnbuckle for 1/16' Wire Rope

Name: MS21255C Stainless Steel Turnbuckle for 1/16' Wire Rope
Brand: Lexco Cable Manufacturing
SKU: MIL-4b99a6
Price: 29.99 USD
Availability: OutOfStock

SKU:MIL-4b99a6

High-strength stainless steel turnbuckle for 1/16' wire ropes, meets Mil-Spec standards

$29.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The MS21255C Stainless Steel Turnbuckle is designed to secure 1/16' wire ropes with a Minimum Breaking Strength (MBS) of 800 lbs. This sturdy turnbuckle, meeting Military Specification standards, features UNF-3A threading, precise dimensions, and durable stainless steel construction. Ideal for military, aerospace, and industrial applications, it replaces the outdated AN 170, offering reliable performance and ease of use.

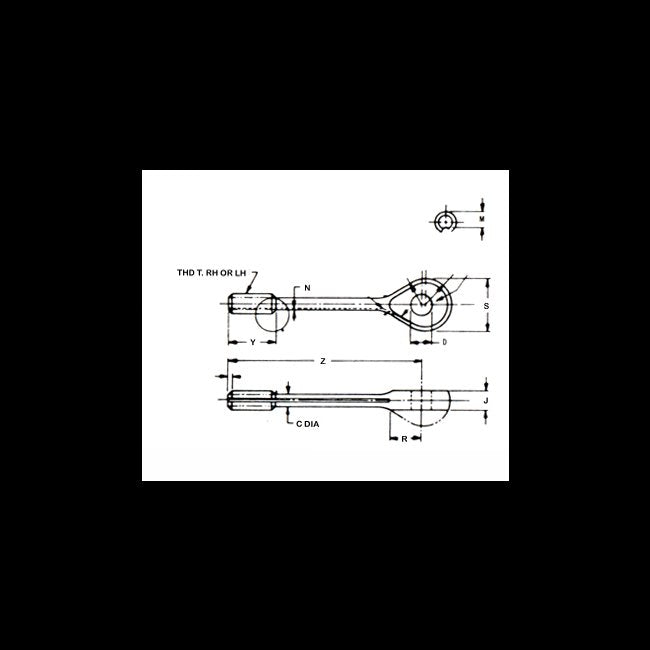

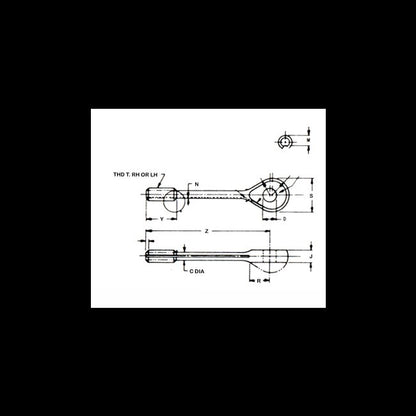

Product Specifications

Specifications A 010 000 Dia

.188

Specifications B Max

.0096

Specifications C 006 000 Diain

.094

Specifications D 031

.325

Specifications J 005

.125

Specifications Mbs Lbs

800

Specifications M Max

.1139

Specifications M Min

.1094

Specifications S Dia

.375

Specifications Thread T Unf 3a

6 - 40

Specifications Wire Rope Dia Ref

1/16

Specifications Y 047

.375

Specifications Z 031 015

1.500

CAGE

0T9L4

NAICS

332510

PSC

4030
