MS21259 Series 0.297 Inch (in) Diameter A Right Hand Thread Stud
MS21259 Series 0.297 Inch (in) Diameter A Right Hand Thread Stud
SKU:MS2-bd6f23
N/A
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
MS21259 Series 0.297 Inch (in) Diameter A Right Hand Thread Stud
$49.99
Quantity: 1
Claim Your Seller Account
MS21259 Series 0.297 Inch (in) Diameter A Right Hand Thread Stud
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Ready to Grow Without Cash Flow Constraints?

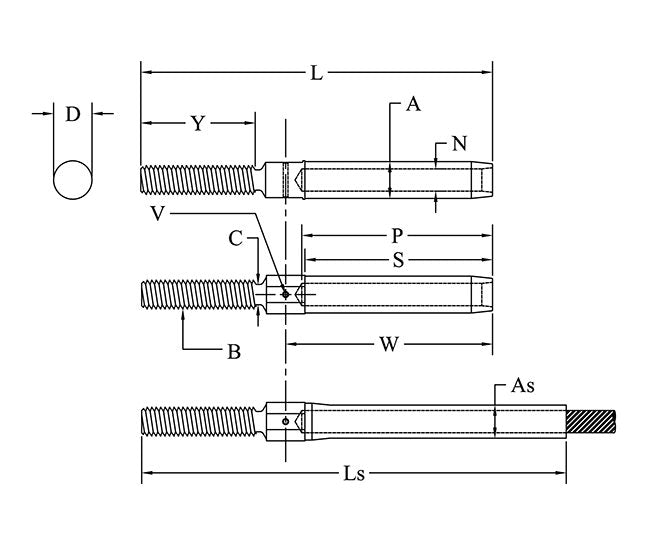

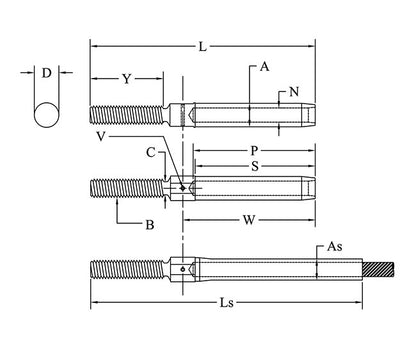

Product Specifications
Specifications Cable Diameter
5/32 in
Specifications Diameter A
0.297 in
Specifications Diameter As
0.250 in
Specifications Diameter C
0.226 in
Specifications Diameter N
0.172 in
Specifications Dimension D
0.313 in
Specifications Dimension L
3.627 in
Specifications Dimension L Tolerance
±0.063 in
Specifications Features
Right Hand Thread
Specifications Reference Ls
3.970 in
Specifications Thread B
1/4-28
Specifications Thread Type
Unified (UN) 3A | Unified Fine (UNF) 3A
