MS21259 Series 0.359 Inch (in) Diameter A Left Hand Thread Stud

MS21259 Series 0.359 Inch (in) Diameter A Left Hand Thread Stud

MS2-30874b

N/A

$49.99
$49.99
Sale

Initiate Order

MS21259 Series 0.359 Inch (in) Diameter A Left Hand Thread Stud

MS21259 Series 0.359 Inch (in) Diameter A Left Hand Thread Stud

$49.99

Quantity: 1

Claim Your Seller Account

MS21259 Series 0.359 Inch (in) Diameter A Left Hand Thread Stud

MS21259 Series 0.359 Inch (in) Diameter A Left Hand Thread Stud

$49.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

Ready to Grow Without Cash Flow Constraints?

Get Net 30, 60, or 90 day terms at 0% interest on any purchase

Check Your Eligibility Now
Ready to Grow Without Cash Flow Constraints?
View full details

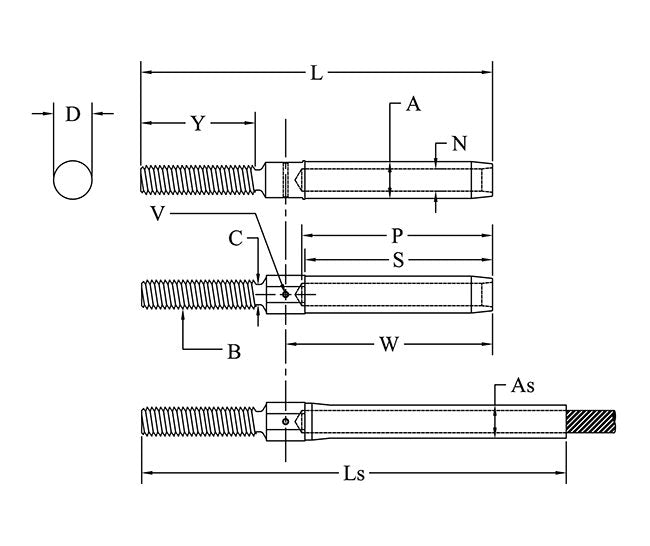

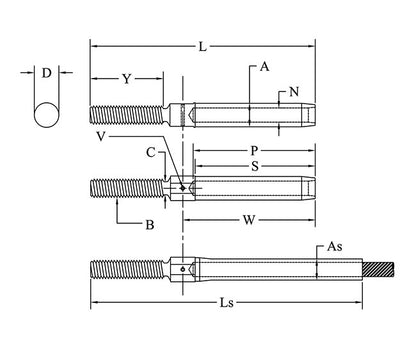

Product Specifications

Specifications Cable Diameter
3/16 in
Specifications Diameter A
0.359 in
Specifications Diameter As
0.313 in
Specifications Diameter C
0.285 in
Specifications Diameter N
0.203 in
Specifications Dimension D
0.375 in
Specifications Dimension L
4.002 in
Specifications Dimension L Tolerance
±0.063 in
Specifications Features
Left Hand Thread
Specifications Reference Ls
4.170 in
Specifications Thread B
5/16-24
Specifications Thread Type
Unified (UN) 3A | Unified Fine (UNF) 3A
