MS21259 Series 1.593 Inch (in) Diameter A Left Hand Thread Stud
MS21259 Series 1.593 Inch (in) Diameter A Left Hand Thread Stud
SKU:MS2-040dea
N/A
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
MS21259 Series 1.593 Inch (in) Diameter A Left Hand Thread Stud
$49.99
Quantity: 1
Claim Your Seller Account
MS21259 Series 1.593 Inch (in) Diameter A Left Hand Thread Stud
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Ready to Grow Without Cash Flow Constraints?

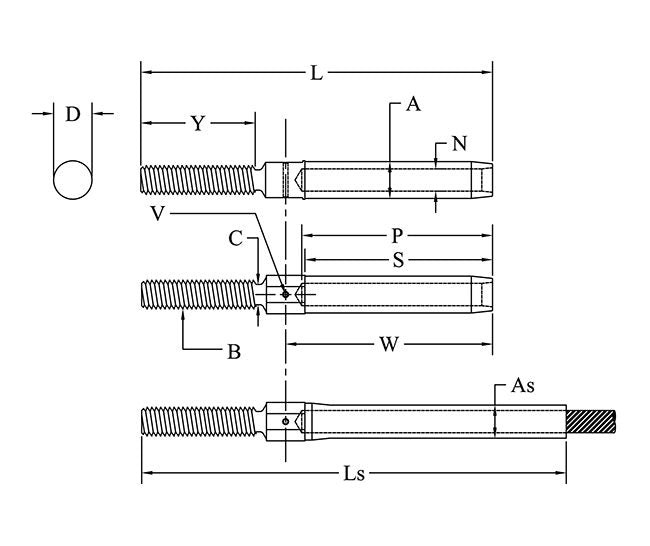

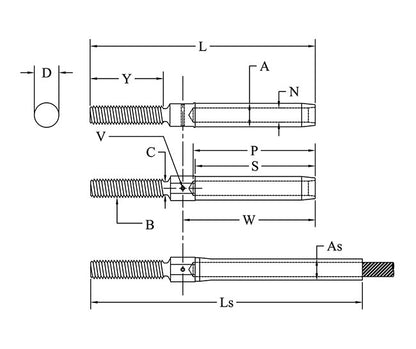

Product Specifications
Specifications Cable Diameter
7/8 in
Specifications Diameter A
1.593 in
Specifications Diameter As
1.437 in
Specifications Diameter C
1.092 in
Specifications Diameter N
0.921 in
Specifications Dimension D
1.625 in
Specifications Dimension L
13.226 in
Specifications Dimension L Tolerance
±0.063 in
Specifications Features
Left Hand Thread
Specifications Reference Ls
13.990 in
Specifications Thread B
1-1/8-12
Specifications Thread Type
Unified (UN) 3A | Unified Fine (UNF) 3A
