MS21259 Stainless Steel Studs

MS21259 Stainless Steel Studs

SKU:MIL-666cbb

Durable stainless steel studs for military and industrial use, with RH/LH thread options for versatile applications.

Regular price $24.99
Regular price Sale price $24.99
Sale

Initiate Order

MS21259 Stainless Steel Studs

MS21259 Stainless Steel Studs

$24.99

Quantity: 1

Claim Your Seller Account

MS21259 Stainless Steel Studs

MS21259 Stainless Steel Studs

$24.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

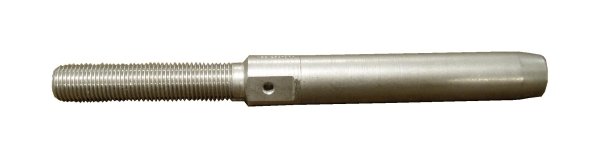

The MS21259 Stainless Steel Studs are precision-engineered components designed for heavy-duty applications in military and industrial settings. Crafted from high-grade stainless steel, these studs offer exceptional durability and corrosion resistance, ensuring long-lasting performance in challenging environments. With a RH or LH thread specification option, these studs provide versatility to suit various mounting requirements, making them ideal for wire rope installations.

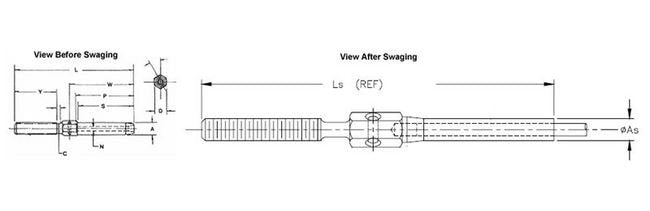

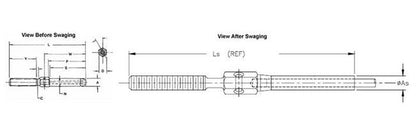

Product Specifications

Specifications As Diam
.500
Specifications A Diam
.563
Specifications C Diam In
.405
Specifications D In
.625
Specifications Lbs Per Piece
.265
Specifications Ls Ref
5.75
Specifications L 015 000 In
5.931
Specifications N Diam
.297
Specifications P In
2.761
Specifications R 005 000 Diameter In
.098
Specifications S 062 000 In
2.688
Specifications Thread Size B
7/16-20
Specifications To Fit Wire Rope Dia In
9/32
Specifications W 016 In
3.076
Specifications Y 063 000 In
1.875
CAGE
0T9L4
NAICS
332510
PSC
4030
