MS21259 Stainless Steel Studs
MS21259 Stainless Steel Studs
SKU:MIL-bd4586
Premium stainless steel studs meeting military specifications, available in RH or LH thread options.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
MS21259 Stainless Steel Studs
$24.99
Quantity: 1
Claim Your Seller Account
MS21259 Stainless Steel Studs
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The MS21259 Stainless Steel Studs, also known as AN 666 studs, are precision-engineered to meet the demanding requirements of military specifications. Crafted with high-grade stainless steel, these studs are available in both Right-Hand (RH) and Left-Hand (LH) thread configurations. With a range of key specifications including To Fit Wire Rope Dia, Thread Size, and precise dimensions, these studs ensure secure fastening and reliable performance in critical applications.

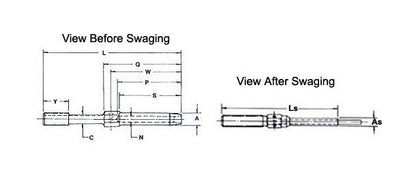

Product Specifications
Specifications As Diam
1.625
Specifications A Diam
1.812
Specifications C Diam In
1.217
Specifications D In
1.875
Specifications Lbs Per Piece
5.35
Specifications Ls Ref
15.88
Specifications L 015 000 In
14.969
Specifications N Diam
1.046
Specifications P In
8.229
Specifications S 062 000 In
8.156
Specifications Thread Size B
(1 1/4)-12
Specifications To Fit Wire Rope Dia In
1
Specifications W 016 In
9.000
Specifications Y 063 000 In
5.000
CAGE
0T9L4
NAICS
332510
PSC
4030
