MS21259 Stainless Steel Studs

MS21259 Stainless Steel Studs

SKU:MIL-4a50d7

High-quality MS21259 Stainless Steel Studs for secure and precise fastening in military-grade applications.

Regular price $29.99
Regular price Sale price $29.99
Sale

Initiate Order

MS21259 Stainless Steel Studs

MS21259 Stainless Steel Studs

$29.99

Quantity: 1

Claim Your Seller Account

MS21259 Stainless Steel Studs

MS21259 Stainless Steel Studs

$29.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

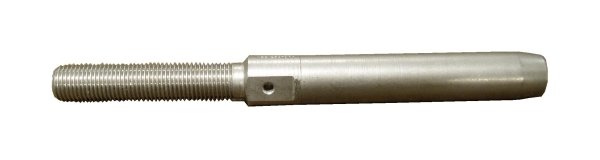

The MS21259 Stainless Steel Studs are precision-engineered to meet the exacting standards of military specifications. Constructed from high-grade stainless steel, these studs are available with specified right-hand (RH) or left-hand (LH) threads. With dimensions meticulously crafted to fit wire rope diameters, thread sizes, and various critical measurements, these studs ensure secure fastening in demanding applications. Trust in the durability and reliability of these studs for your critical operations.

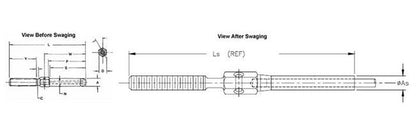

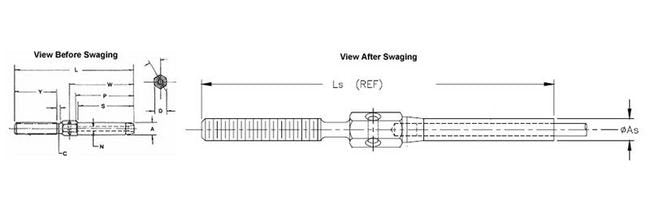

Product Specifications

Specifications As Diam
1.437
Specifications A Diam
1.593
Specifications C Diam In
1.092
Specifications D In
1.625
Specifications Lbs Per Piece
3.9
Specifications Ls Ref
13.99
Specifications L 015 000 In
13.226
Specifications N Diam
0.921
Specifications P In
7.166
Specifications S 062 000 In
7.094
Specifications Thread Size B
(1 1/8)-12
Specifications To Fit Wire Rope Dia In
7/8
Specifications W 016 In
7.846
Specifications Y 063 000 In
4.500
CAGE
0T9L4
NAICS
332510
PSC
4030
