MS21260 Locking Studs (AN 669/NAS 650) - 9/16", Thread Size (3/4)-16

Name: MS21260 Locking Studs (AN 669/NAS 650) - 9/16", Thread Size (3/4)-16
Brand: Lexco Cable Manufacturing
SKU: MIL-face40
Price: 14.99 USD
Availability: OutOfStock

SKU:MIL-face40

Precision-engineered MS21260 Locking Stud meeting military standards AN 669/NAS 650 for 9/16" wire rope.

$14.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

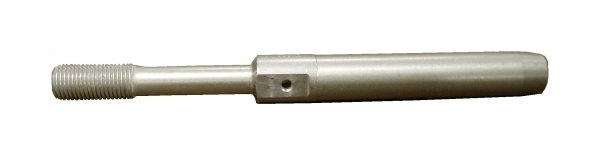

The MS21260 Locking Stud is designed to fit wire rope diameter of 9/16 inches with precise specifications ensuring secure locking. Manufactured to meet military standards AN 669 and NAS 650, this locking stud features a sturdy construction with dimensions including A Diameter of .984 inches, As. Diameter of .875 inches, and P Length of 5.011 inches. With a weight of 1 lb per piece, this locking stud offers reliability and durability crucial for demanding military applications.

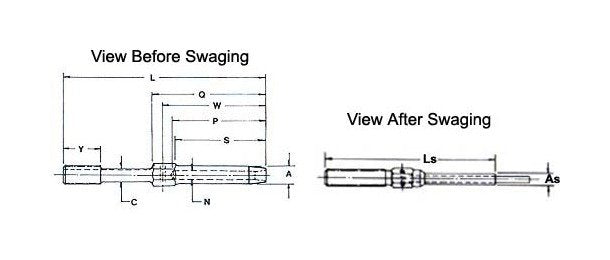

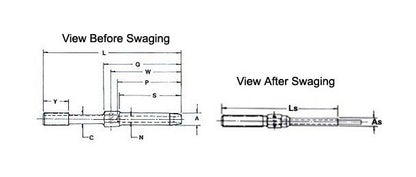

Product Specifications

Specifications As Diam

.875

Specifications A Diam

.984

Specifications C 006 000 Diain

.654

Specifications Lbs Per Piece

Specifications Ls Ref

9.188

Specifications L 063 In

9.188

Specifications N Diam

.594

Specifications P In

5.011

Specifications Q 031 016 In

6.000

Specifications S 062 000 In

4.938

Specifications Thread Size B

(3/4)-16

Specifications To Fit Wire Rope Dia In

9/16

Specifications W In

5.468

Specifications Y 047 In

1.500

CAGE

0T9L4

NAICS

332510

PSC

4030
