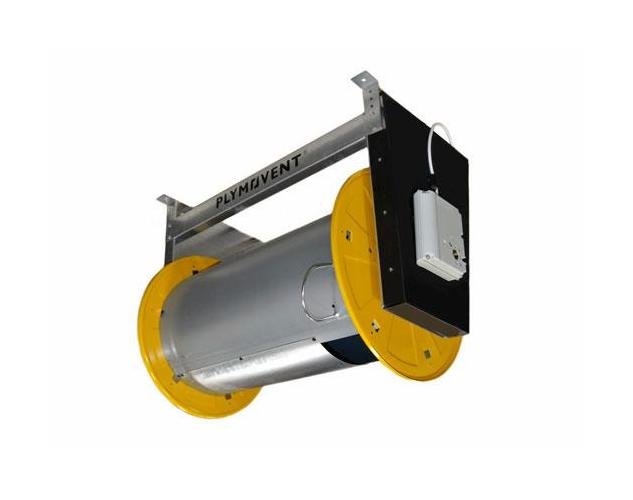

MSHR-1050-150 Motorized Spring-assisted Hose Reel (MSHR)
MSHR-1050-150 Motorized Spring-assisted Hose Reel (MSHR)
SKU:HOS-35ddd7
N/A
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
MSHR-1050-150 Motorized Spring-assisted Hose Reel (MSHR)
$49.99
Quantity: 1
Claim Your Seller Account
MSHR-1050-150 Motorized Spring-assisted Hose Reel (MSHR)
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

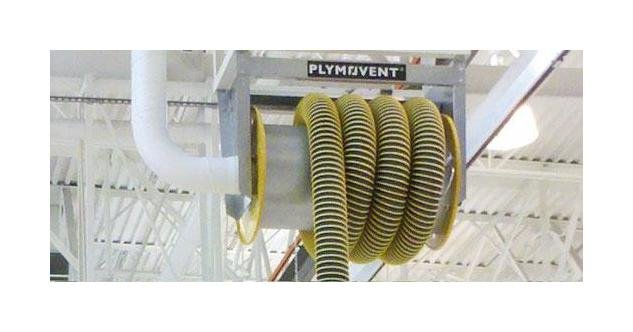

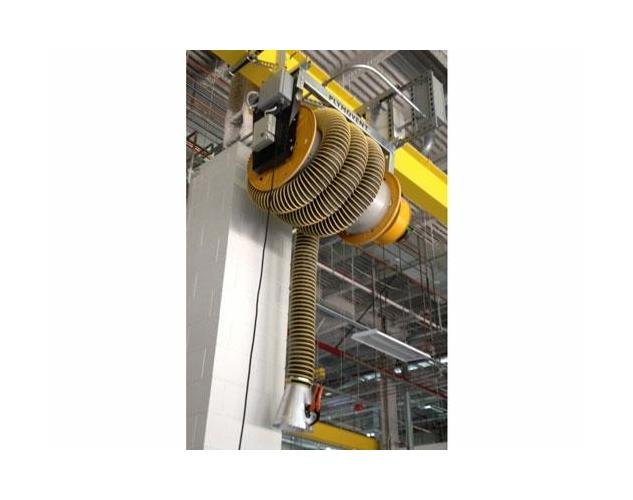

The Motorized Spring-operated Hose Reel (MSHR) combines the benefits of two Plymovent hose reels, SER and MHR. MSHR includes both a recoil motor and spring cassette, making it ideal for facilities with heavy-duty trucks that demand more lifting capacity, due to the weight of the hose and nozzle. With MSHR, the hose will stay in any position until the up or down button is engaged.With the hose elevated, operators can safely use otherequipment in the workshop such as cranes or lifts, while also limiting potential damage to personnel and vehicles.Designed to retract the hose with an electric motor that is assisted by a spring.
Product Specifications
Specifications Applications
The MSHR motorized spring-assist reel can lift an exhaust hose and nozzle. A standard overload relay and circuit breaker protect the mechanism from accidental strain.
Specifications Current
1.8 A | 2.7 A
Specifications Frequency
50/60 Hz | 60 Hz
Specifications Hose Diameter
6 Inch | 150 mm
Specifications Maximum Hose Length
41.0 ft | 12.5 m
Specifications Output
320 W | 390 W
Specifications Phases
Single Phase
Specifications Power Supply
120 V | 230 V
Specifications Rpm
12 | 14
Specifications Weight Without Hose
140 lb | 64 kg
