MST Point of Attachment Panel
MST Point of Attachment Panel
SKU:SSP-6ee2c2
Maintain clean air quality with the MST Point of Attachment Panel. Efficiently removes contaminants for optimal performance.
Regular price
$1,050.00
Regular price
Sale price
$1,050.00
Unit price
per
Initiate Order
MST Point of Attachment Panel
$1,050.00
Quantity: 1
Claim Your Seller Account
MST Point of Attachment Panel
$1,050.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The MST Point of Attachment Panel is a critical component in maintaining clean air quality by effectively removing contaminants introduced between the purification/filtration panel and the point of attachment panel. With a sturdy build weighing 11 lbs (5.0 kg) and a compact size of 16 x 16 x 5.75 inches (406 x 406 x 146 mm), this panel offers a maximum inlet pressure of 125 psig (8.6 bar) and an outlet pressure range of 0-125 psig (0-8.6 bar). Featuring a dynamic air flow rate of 133 scfm (62.8 L/s) at 100 psi, this panel ensures efficient filtration for optimal performance. The MST Point of Attachment Panel comes with a replacement filter (80066) and is priced at $1050, making it a reliable and cost-effective solution for clean air treatment systems.
Product Specifications

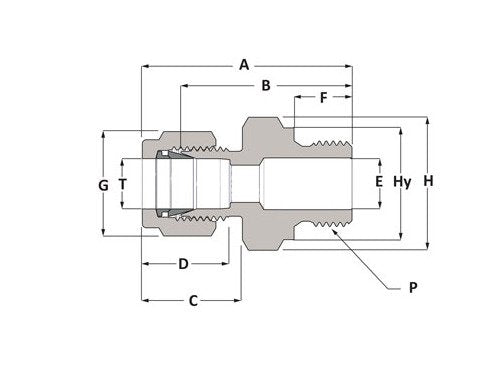

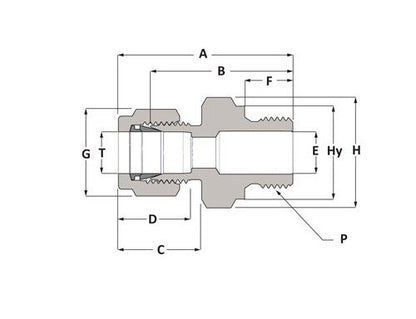

Dimensions A
1.82 in
Dimensions B Body
1.53 in
Dimensions C
0.76 in
Dimensions D
0.66 in
Dimensions E
0.28 in
Dimensions F
0.56 in
Dimensions G
11/16 in
Dimensions H
1 1/16 in
Dimensions Hy
1.02 in
Dimensions P
1/2 in
Dimensions T
3/8 in
Specifications Body Material
Alloy 400
Specifications Brand Series
Duolok
Specifications Connection 1 Size
3/8 in
Specifications Connection 1 Type
Tube Fitting
Specifications Connection 2 Size
1/2 in
Specifications Connection 2 Type
Male BSPP
Specifications End Connections
TF x Male BSPP
Specifications Handle Color
0
Specifications Handle Type
0
Specifications Production Category
4
Specifications Shape
Straight
Category 6
Duolok® Tube Fittings
