MTC Liquid-Tight Flexible Metal Conduit
MTC Liquid-Tight Flexible Metal Conduit
SKU:LIQ-4a5e7e
Flexible, liquid-tight conduit for machine centers and robotics. Provides superior wiring protection with an IP 67 rating. RoHS WEEE certified.
Regular price
$129.99
Regular price
Sale price
$129.99
Unit price
per
Initiate Order
MTC Liquid-Tight Flexible Metal Conduit
$129.99
Quantity: 1
Claim Your Seller Account
MTC Liquid-Tight Flexible Metal Conduit
$129.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

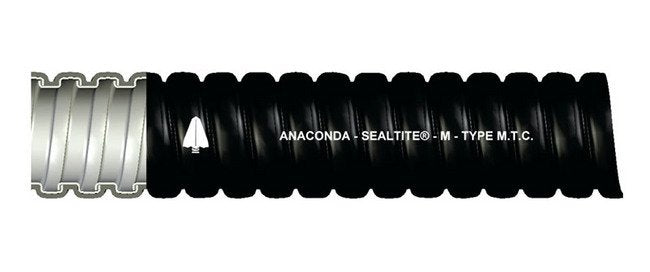

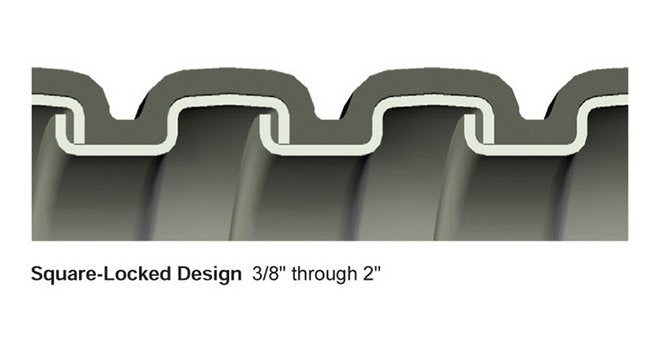

The MTC Liquid-Tight Flexible Metal Conduit is an ideal solution for wiring applications in machine centers and robotics. Constructed with an interlocked zinc galvanized steel core and a PVC jacket, this conduit offers flexibility and liquid-tight protection. It comes in a trade size of 1-1/4 inches and a length of 50 feet. With an IP 67 rating and RoHS WEEE certification, it ensures superior wiring protection while meeting industry standards.
Product Specifications
Application 0
Extra Flexible. For Use in Machine Centers and RoboticsTemperature Range: -4°F to +140°F (-20°C to +60°C)
Installation 0
Conduit used with standard liquid-tight connector for easy installation. IP 67 Rated when installed with approved connectors.Delivers superior wiring protection where agency approvals are not required.Manufactured in a full range of trade sizes from 3/8" through 2".Smooth appearing jacket for exposed applications. Rated for temperature range of -4ºF to +140ºF (-20ºC to +60ºC).Provides liquid-tight raceway for electrical conductors.
Specifications Approx Inside Bend Radius
3.5 in | 88.9 mm
Specifications Approx Weight Per 100 Ft
40 lbs | 18.14 kg
Specifications Color
BLACK
Specifications Core Material
Galvanized Steel
Specifications Cross Reference
89242 | MTLT | MTLT-1-1/4 | VJC-14
Specifications Electrical Trade Size
1-1/4 in | 35 mm
Specifications Industry Certifications
RoHS WEEE
Specifications Ingress Protection Ip Rating
Ingress Protection (IP) 66/67
Specifications Inside Diameter
1.370 to 1.395 in | 34.798 to 35.433 mm
Specifications Jacket Benefits
Liquid Tight
Specifications Jacket Material
Polyvinyl Chloride (PVC)
Specifications Length
50 ft | 15.24 m
Specifications Outside Diameter
1.565 to 1.595 in | 39.751 to 40.513 mm
Specifications Packaging
Standard Carton
Specifications Type
MTC
