MTC Machine Tool Conduit LFMC
MTC Machine Tool Conduit LFMC
SKU:LIQ-9582df
Flexible, liquid-tight conduit for machine centers and robotics, meets RoHS and WEEE certifications, IP 67 rated with approved connectors.
Regular price
$599.99
Regular price
Sale price
$599.99
Unit price
per
Initiate Order
MTC Machine Tool Conduit LFMC
$599.99
Quantity: 1
Claim Your Seller Account
MTC Machine Tool Conduit LFMC
$599.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

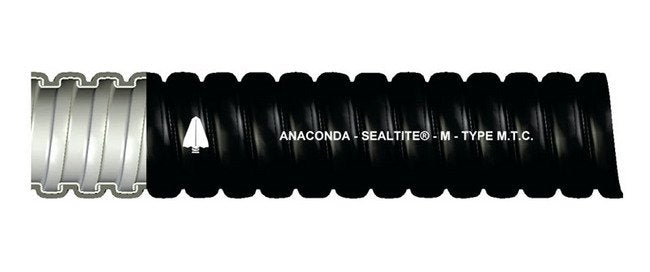

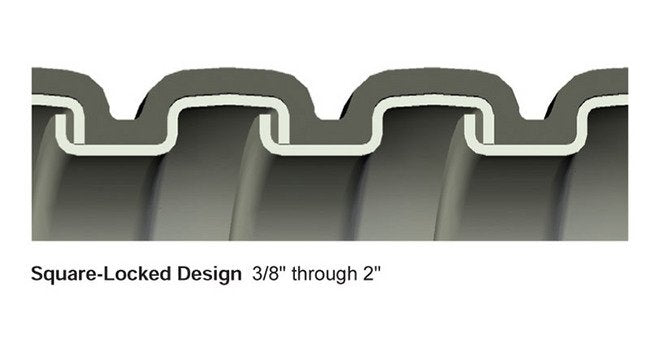

The MTC Machine Tool Conduit LFMC is a flexible liquid-tight conduit designed for extra flexibility in machine centers and robotics applications. Constructed with a continuously interlocked hot-dipped zinc galvanized steel core and a PVC outer jacket, this conduit offers superior wiring protection. It meets RoHS and WEEE industry certifications and provides a liquid-tight raceway for electrical conductors. With an IP 67 rating when installed with approved connectors, this conduit ensures secure wiring installations without requiring agency approvals.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Application 0
Extra Flexible. For Use in Machine Centers and RoboticsTemperature Range: -4°F to +140°F (-20°C to +60°C)
Installation 0
Conduit used with standard liquid-tight connector for easy installation. IP 67 Rated when installed with approved connectors.Delivers superior wiring protection where agency approvals are not required.Manufactured in a full range of trade sizes from 3/8" through 2".Smooth appearing jacket for exposed applications. Rated for temperature range of -4ºF to +140ºF (-20ºC to +60ºC).Provides liquid-tight raceway for electrical conductors.
Specifications Approx Inside Bend Radius
1.5 in | 38.1 mm
Specifications Approx Weight Per 100 Ft
16 lbs | 7.26 kg
Specifications Color
BLACK
Specifications Core Material
Galvanized Steel
Specifications Cross Reference
89201 | MTLT | MTLT-3/8 | VJC-10
Specifications Electrical Trade Size
3/8 in | 12 mm
Specifications Industry Certifications
RoHS WEEE
Specifications Ingress Protection Ip Rating
Ingress Protection (IP) 66/67
Specifications Inside Diameter
0.485 to 0.505 in | 12.319 to 12.827 mm
Specifications Jacket Benefits
Liquid Tight
Specifications Jacket Material
Polyvinyl Chloride (PVC)
Specifications Length
800 ft | 243.84 m
Specifications Outside Diameter
0.679 to 0.704 in | 17.247 to 17.882 mm
Specifications Packaging
Small Reels
Specifications Type
MTC
