MTRJ Connector Fiber Optic Pigtail
MTRJ Connector Fiber Optic Pigtail
SKU:FIB-4e2545
N/A
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
MTRJ Connector Fiber Optic Pigtail
$49.99
Quantity: 1
Claim Your Seller Account
MTRJ Connector Fiber Optic Pigtail
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Fiber Optic Pigtails and Pigtail Packs for SplicingOpticonx, Inc. manufactures a full line of singlemode simplex and duplex pigtails ready for fusion splice applications in 900 micron and jacketed configurations. Pigtails are available with standard or bend insensitive fiber. Custom lengths, fiber types, jacket colors, and connector types are available.Opticonx manufactures our cable assemblies using only top quality components, equipment, and processes resulting in product that meets or exceeds even the most demanding specifications. Our standard 15 year limited warranty ensures years of worry free service.
Product Specifications
Color Coded Pigtails Packs

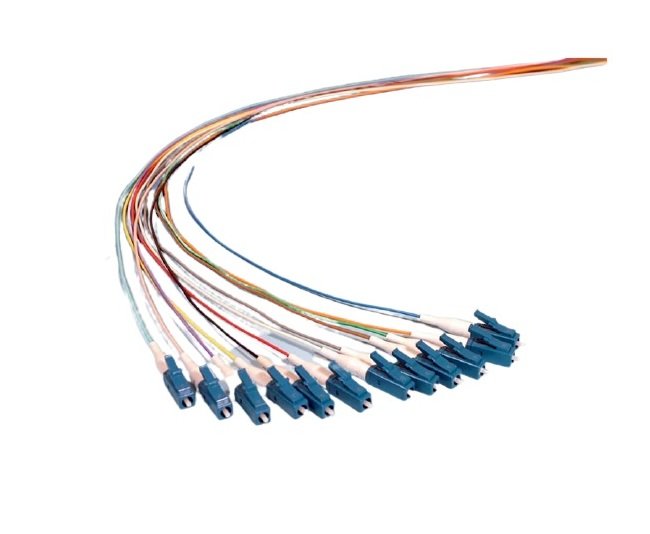

Opticonx, Inc. pigtail packs are color coded for ease of identification in the panel and in the splice tray (non color coded pigtails are available) and are available up to 12 fibers.
Connector Geometry
Controlling the endface geometry of fiber optic connectors is key to ensuring long term reliability and performance of a fiber optic cable assembly. Radius, apex offset, and fiber undercut are controlled and optimized by continually working to refine and improve the processes, equipment, and training that are involved in manufacturing. Opticonx utilizes the latest equipment and highly trained personnel to ensure quality product that will work well now and well into the future.
Connector Performance Connector Type
MTRJ
Connector Performance Maximum Insertion Loss Il
0.50 dB
Connector Performance Minimum Return Loss
-55 dB
Connector Performance Part Number Designator
12
Connector Performance Insertion Loss Il
0.20 dB
Custom Assemblies
Bring us your requirements and we will work with you to customize a solution. From color coding jackets to non-standard cable or connector types, Opticonx has the equipment, knowledge, and experience to meet even the most demanding applications.
Documentation
Opticonx assemblies are tested 100% for insertion loss and return loss. Printed or digital test results are available on request. If required, interferometer results can be included (must specify before ordering). Use and care instructions, part number, and description on included data card.
Fiber Performance Os1 Clad Outside Diameter Od Fiber
125 µm
Fiber Performance Os1 Core Outside Diameter Od Fiber
8.3 µm
Fiber Performance Os1 Cutoff Wavelength Fiber
1260
Fiber Performance Os1 Cutoff Wavelength Tolerance Fiber
70
Fiber Performance Os1 Maximum Attenuation At 1310 Nanometer Nm F
1.0 dB/km
Fiber Performance Os1 Maximum Attenuation At 1550 Nanometer Nm F
0.8 dB/km
Fiber Performance Os1 Mode Field Fiber
9.2
Fiber Performance Os1 Mode Field Tolerance Fiber
0.4
Fiber Performance Os1 Zero Dispersion Wavelength Fiber
1301.5 to 1321.5 nm
Fiber Performance Os2 Clad Outside Diameter Od Fiber
125 µm
Fiber Performance Os2 Core Outside Diameter Od Fiber
8.3 µm
Fiber Performance Os2 Maximum Attenuation At 1310 Nanometer Nm F
1.0 dB/km
Fiber Performance Os2 Maximum Attenuation At 1550 Nanometer Nm F
0.8 dB/km
Ordering Information
Splice PacksSP-AAB C – DDAA- 06 for 6 fiber, 12 for 12 fiberB=9 for SM, 5 for OM1, 52 for OM2, 53 for OM3, 54 for OM4C= connector designator Z= length in meters (2 digit)Simplex and Duplex PigtailsA B C P D LL (length in meters)A=9 for SM, 5 for OM1, 52 for OM2, 53 for OM3, 54 for OM4B= 1 for simplex, 2 for duplex C = 9 for 900um, 2 for 2mm, 3 for 3mm D=connector designatorExample: 9192A03 is a Singlemode simplex 900 micron SC/APC 3 meter pigtailRibbon PigtailSP-AR-BC-D-LL (Length in meters)Where:A= B for bare ribbon, J for jacketed ribbonB=9 for SM, 5 for OM1, 52 for OM2, 53 for OM3, 54 for OM4C=connector designatorD=breakout length=A for 12", B for 24", C for 36"Xtreme+ Ribbon Pigtail Splice CassetteOpticonx Xtreme+ ribbon pigtail splice cassette is a pre-wired solution for managing fusion splice pigtails for mass fusion applications. Use with Opticonx Xtreme line of patch panels or order retrofit brackets for legacy LGX panels.X+01 A B RP01Where:A=9 for SM, 5 for OM1, 52 for OM2, 53 for OM3, 54 for OM4B=14 for LC, 31 for LC/APCLGX Retrofit Brackets:P3XRF-1 (1 cassette per LGX space)P3XRF-2 (2 cassettes per LGX space)
Ribbon Pigtails
Opticonx ribbon pigtails are 12 fiber bare or jacketed ribbon fiber cables broken out on one end with single fiber terminations. The other end is left unterminated for fusion splicing. They are typically used in mass fusion splicing applications. Also available pre-wired into high density Xtreme+ cassettes for secure storage of individual mass fusion splices.
