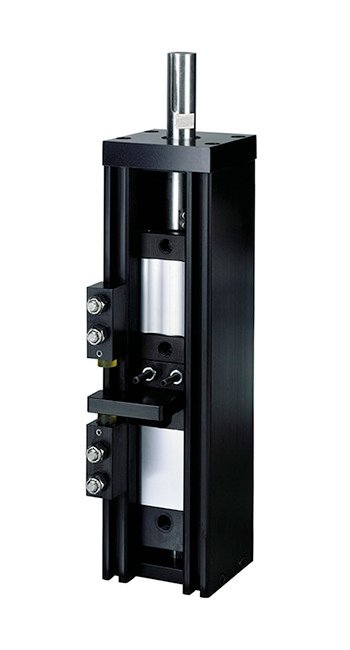

Multi-Act 1.25 inch Bore Size Multi-Actuator
Multi-Act 1.25 inch Bore Size Multi-Actuator
SKU:ROT-8276a7
Enhance efficiency and precision with the Multi-Act 1.25 inch Bore Size Multi-Actuator, designed for seamless linear and rotary motion in industrial applications.
Regular price
$899.99
Regular price
Sale price
$899.99
Unit price
per
Initiate Order
Multi-Act 1.25 inch Bore Size Multi-Actuator
$899.99
Quantity: 1
Claim Your Seller Account
Multi-Act 1.25 inch Bore Size Multi-Actuator
$899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Multi-Act Integrated Motion Actuator in a 1.25-inch bore size is a versatile solution designed for precise positioning and sorting tasks in industrial settings. With the ability to produce both linear and rotary motions simultaneously, this actuator offers superior efficiency and adaptability. Featuring advanced technology and durable aluminum construction, it ensures reliable operation under varying pressures and temperatures. Ideal for multi-position applications, this actuator enhances productivity and accuracy in sorting and selective assembly operations. Available in different stroke sizes and rotational outputs to suit diverse requirements.
Product Specifications
Features Features
Stop Cushioning (Optional)Position FeedbackAdjustable StrokeBumpers / CushionsHome /Â Limit /Â Position Switches (Optional)Multi-positionLinear: Strokes 1, 2 and 4 inches, Force 100 pounds at 100 psiRotary: Rotations 0 deg to 90 deg and 0 deg to 270 degTorques 25 to 50 inch pounds at 100 psi
Specifications Actuator Style
Multi-Motion (Linear & Rotary) | Rotary Vane (Single)
Specifications Body Material
Aluminum
Specifications Bore Size
1.25 in
Specifications Cylinder Action
Single
Specifications Cylinder Configuration
Guided | Simple
Specifications Cylinder Style
Miniature | Rectangular | Rotating
Specifications Device Type
Linear Actuator | Rod Type
Specifications Force At 100 Pound Per Square Inch Psi Pressure
100 lb
Specifications Maximum Torque
50 in·lb
Specifications Mounting Type
Threaded
Specifications Number Of Shafts
Single Shaft
Specifications Operating Pressure Range High
200 psi
Specifications Operating Pressure Range Low
35 psi
Specifications Operating Temperature High
180 ºF
Specifications Operating Temperature Low
-20 ºF
Specifications Rated Loadforce
100 lb
Specifications Rated Speed
200 in/min
Specifications Rotational Output
Shaft
Specifications Rotation Angle
<45 º | 0 to 270 º | 0 to 90 º | 120 º | 135 º | 180 º | 225 º | 270 º | 45 º | 90 º | Indexing / Multi-position
Specifications Stroke Or X Axis Travel High
4 in
Specifications Stroke Size Low
1 in
Specifications Technology Type
Pneumatic
