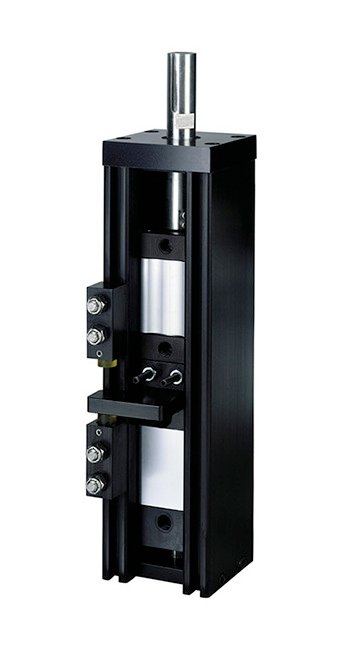

Multi-Act 2.5 Inch Bore Multi-Motion Integrated Actuator
Multi-Act 2.5 Inch Bore Multi-Motion Integrated Actuator
SKU:ROT-2568f1
Enhance operational efficiency with the Multi-Act 2.5 Inch Bore Multi-Motion Integrated Actuator - ideal for precise linear and rotary motions in industrial settings.
Regular price
$699.99
Regular price
Sale price
$699.99
Unit price
per
Initiate Order
Multi-Act 2.5 Inch Bore Multi-Motion Integrated Actuator
$699.99
Quantity: 1
Claim Your Seller Account
Multi-Act 2.5 Inch Bore Multi-Motion Integrated Actuator
$699.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Multi-Act 2.5 Inch Bore Size Multi-Act Integrated Motion Actuator is a versatile solution for precise motion control needs in industrial applications. This linear and rotary actuator features a 2.5-inch bore size, capable of producing both linear and rotary motions independently. With pressure ranges from 35 to 200 psi, operating temperatures from -20°F to 180°F, and a maximum torque of 600 in·lb, this actuator offers exceptional performance. Its adjustable stroke, bumpers, and position switches enhance operational flexibility, making it ideal for sorting, positioning, and selective-assembly operations.
Product Specifications
Features Features
Stop Cushioning (Optional)Position FeedbackAdjustable StrokeBumpers / CushionsHome /Â Limit /Â Position Switches (Optional)Multi-positionLinear: Strokes 2,4,6,9 and 12 inchesForce 440 pounds at 100 psiRotary: Rotations 0 deg to 90 deg and 0 deg to 270 degTorques 150 to 600 inch pounds at 100 psi
Specifications Actuator Style
Multi-Motion (Linear & Rotary) | Rotary Vane (Single)
Specifications Body Material
Aluminum
Specifications Bore Size
2.5 in
Specifications Cylinder Action
Single
Specifications Cylinder Configuration
Guided | Simple
Specifications Cylinder Style
Rectangular | Rotating
Specifications Device Type
Linear Actuator | Rod Type
Specifications Force At 100 Pound Per Square Inch Psi Pressure
100 lb
Specifications Maximum Torque
600 in·lb
Specifications Mounting Type
Threaded
Specifications Number Of Shafts
Single Shaft
Specifications Operating Pressure Range High
200 psi
Specifications Operating Pressure Range Low
35 psi
Specifications Operating Temperature High
180 ºF
Specifications Operating Temperature Low
-20 ºF
Specifications Rated Loadforce
440 lb
Specifications Rated Speed
200 in/min
Specifications Rotational Output
Shaft
Specifications Rotation Angle
<45 º | 0 to 270 º | 0 to 90 º | 120 º | 135 º | 180 º | 225 º | 270 º | 45 º | 90 º | Indexing / Multi-position
Specifications Stroke Or X Axis Travel High
12 in
Specifications Stroke Size Low
2 in
Specifications Technology Type
Pneumatic
