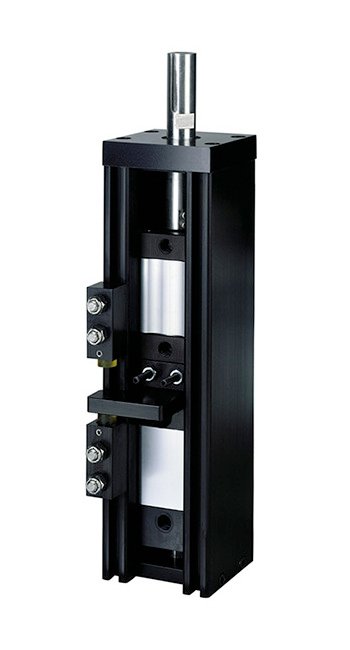

Multi-Act 5-Inch Bore Multi-Act Integrated Motion Actuator
Multi-Act 5-Inch Bore Multi-Act Integrated Motion Actuator
SKU:ROT-390a52
Efficiently combine linear and rotary motions with the Multi-Act 5-Inch Bore Integrated Motion Actuator for precise industrial applications.
Regular price
$899.99
Regular price
Sale price
$899.99
Unit price
per
Initiate Order
Multi-Act 5-Inch Bore Multi-Act Integrated Motion Actuator
$899.99
Quantity: 1
Claim Your Seller Account
Multi-Act 5-Inch Bore Multi-Act Integrated Motion Actuator
$899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Multi-Act 5-Inch Bore Multi-Act Integrated Motion Actuator from Compact Automation Products combines the functionality of linear and rotary motion actuators in a single device, offering the ability to operate both motions independently or simultaneously. Ideal for sorting and selective-assembly operations, this actuator features a robust design with a 5-inch bore size, providing exceptional performance with rotational outputs up to 270 degrees. With adjustable stroke lengths, stop cushioning, position feedback, and the capability to handle significant loads, this actuator ensures precise and efficient motion control for various industrial applications.
Product Specifications
Features Features
Stop Cushioning (Optional)Position FeedbackAdjustable StrokeBumpers / CushionsHome /Â Limit /Â Position Switches (Optional)Multi-positionLinear: Strokes 4 and 8 inchesForce 1900 pounds at 100 psiRotary: Rotations 0 deg to 110 deg and 0 deg to 290 degTorques 1800 to 3600 inch pounds at 100 psi
Specifications Actuator Style
Multi-Motion (Linear & Rotary) | Rotary Vane (Single)
Specifications Body Material
Aluminum
Specifications Bore Size
5 in
Specifications Cylinder Action
Single
Specifications Cylinder Configuration
Guided | Simple
Specifications Cylinder Style
Rectangular | Rotating
Specifications Device Type
Linear Actuator | Rod Type
Specifications Force At 100 Pound Per Square Inch Psi Pressure
100 lb
Specifications Maximum Torque
3600 in·lb
Specifications Mounting Type
Threaded
Specifications Number Of Shafts
Single Shaft
Specifications Operating Pressure Range High
200 psi
Specifications Operating Pressure Range Low
35 psi
Specifications Operating Temperature High
180 ºF
Specifications Operating Temperature Low
-20 ºF
Specifications Rated Loadforce
1900 lb
Specifications Rated Speed
100 in/min
Specifications Rotational Output
Shaft
Specifications Rotation Angle
<45 º | 0 to 270 º | 0 to 90 º | 120 º | 135 º | 180 º | 225 º | 270 º | 45 º | 90 º | Indexing / Multi-position
Specifications Stroke Or X Axis Travel High
8 in
Specifications Stroke Size Low
4 in
Specifications Technology Type
Pneumatic
