Multi-Flex™ 128 Series High Pressure Hot Tap Insertion Plug - 33 in
Multi-Flex™ 128 Series High Pressure Hot Tap Insertion Plug - 33 in
SKU:LOW-793fee
Pressurize pipelines effectively with the Multi-Flex™ 128 Series Hot Tap Insertion Plug - 33 in. Easy to install and durable for long-term use.
Regular price
$899.99
Regular price
Sale price
$899.99
Unit price
per
Initiate Order
Multi-Flex™ 128 Series High Pressure Hot Tap Insertion Plug - 33 in
$899.99
Quantity: 1
Claim Your Seller Account
Multi-Flex™ 128 Series High Pressure Hot Tap Insertion Plug - 33 in
$899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Multi-Flex™ 128 Series 33 Inch High Pressure Hot Tap Insertion Plug is designed for pressurized pipelines, featuring an internal stiffener and a directional shoe for installation through a hot tap and around a 90-degree bend. This plug offers easy hot tap insertion, flow stoppage for repairs, small deflated diameter, flexibility for corner navigation, and durability for long-term use. Made with tough materials including a woven ballistic nylon reinforced polyurethane outer ply, it can be customized to meet specific requirements. Whether for maintenance or testing, this plug ensures reliable performance while meeting institutional procurement standards.
Product Specifications

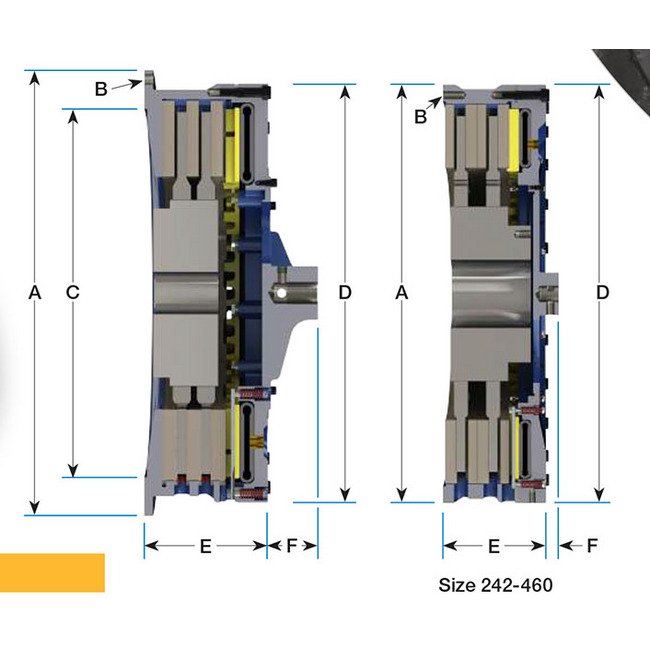

Dimensions Dimension A Imperial Mounting
18.750 in | 476.25 mm
Dimensions Dimension A Metric Mounting
470.00 mm
Dimensions Dimension A Tolerance Imperial Mounting
+0.000 in | -0.003 in | +0.00 mm | -0.08 mm
Dimensions Dimension A Tolerance Metric Mounting
+0.00 mm | -0.08 mm
Dimensions Dimension B Diameter Imperial Mounting
21/32 in
Dimensions Dimension B Diameter Metric Mounting
18.0 mm
Dimensions Dimension B Hole Circle Imperial Mounting
17.50 in | 444.5 mm
Dimensions Dimension B Hole Circle Metric Mounting
445.0 mm
Dimensions Dimension C H7 Metric Mounting
370.00 mm
Dimensions Dimension C Imperial Mounting
14.375 in | 365.13 mm
Dimensions Dimension C Tolerance Imperial Mounting
+0.003 in | -0.000 in | +0.08 mm | -0.00 mm
Dimensions Dimension D
17-1/2 in | 444.5 mm
Dimensions Dimension E Ductile Slotted Center Plate
9-1/2 in | 241 mm
Dimensions Dimension E Ventilated Center Plate
8 in | 203 mm
Dimensions Dimension F
1-3/4 in | 44.5 mm
Dimensions Maximum Bore Range
3.90 in | 99.1 mm
Dimensions Minimum Bore Range
1.88 in | 47.8 mm
Dimensions Quantity Imperial Mounting
8
Dimensions Quantity Metric Mounting
8
Features Features
High cycle lifePredictable preventative maintenanceAvailable in hydraulic or pneumatic actuationSolid, slotted, or ventilated center plates optionsAvailable with Full Marine Corrosion Protection packageCompatible with the Power Performance LI upgrade
Maximum Speed Maximum Speed Complete Clutch
1840 rpm
Maximum Speed Maximum Speed Hub And Center Plate
2460 rpm
Note Note
Consult WPT® Application Engineering for application assistance, service factors, specifications, and detailed drawings/3D models.
Specifications Lining Area
330 in² | 2100 cm²
Specifications Maximum Slip Speed
1640 rpm
Specifications Static Torque At 100 Pounds Per Square Inch Psi 7
56500 lbf·in | 6390 N·m
Weight And Inertia Hub And Center Plate Inertia
12 lb·ft² | 0.47 kg·m²
Weight And Inertia Hub And Center Plate Weight
74 lb | 34 kg
Weight And Inertia Total Inertia
72 lb·ft² | 3.0 kg·m²
Weight And Inertia Total Weight
240 lb | 110 kg
