Multi-Flex 128 Series High Pressure Hot Tap Insertion Plug
Multi-Flex 128 Series High Pressure Hot Tap Insertion Plug
SKU:POW-8cd801
Get the Multi-Flex 128 Series Hot Tap Insertion Plug for reliable pressurized pipeline solutions. Easy installation, durable materials, and customizable for specific needs.
Regular price
$549.99
Regular price
Sale price
$549.99
Unit price
per
Initiate Order
Multi-Flex 128 Series High Pressure Hot Tap Insertion Plug
$549.99
Quantity: 1
Claim Your Seller Account
Multi-Flex 128 Series High Pressure Hot Tap Insertion Plug
$549.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Multi-Flex 128 Series High Pressure Hot Tap Insertion Plug is a versatile solution for pressurized pipelines, designed for hot tap installations with precision. Featuring an internal stiffener and directional shoe for navigating through bends, this plug offers a maximum diameter of 16 inches. Built with woven ballistic nylon reinforced polyurethane, it ensures durability and reliability. Its easy hot tap (live) insertion capability, ability to stop flow for repairs, small deflated diameter, and flexibility for corner navigation make it ideal for various applications. While providing a secure seal, customization options are available to meet specific requirements.
Product Specifications
Bore Range Maximum Bore Range
3.50 in | 88.9 mm
Bore Range Minimum Bore Range
2.00 in | 50.8 mm

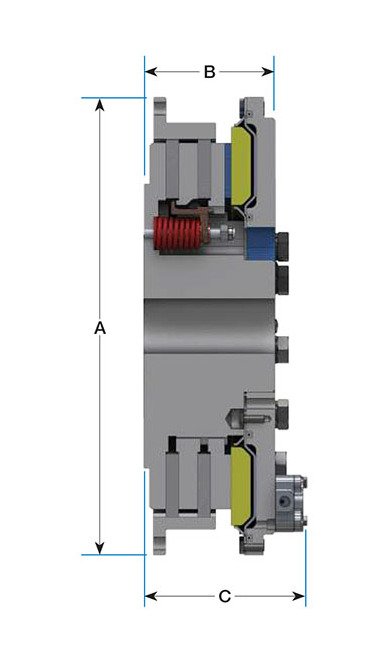

Dimensions Dimension A
18.370 in | 466.60 mm
Dimensions Dimension B
4-3/8 in | 111.5 mm
Dimensions Dimension C
5-7/8 in | 149.2 mm
Features Features
A large diaphragm provides high torque capacity throughout the life of friction discsOversized release springs ensure quick positive disengagementPlate separators reduce and minimize dragMechanical lockup function is standard on all sizes
Note Note
Consult WPT® Application Engineering for application assistance and applicable service factors.
Specifications Lining Area
170 in² | 1080 cm²
Specifications Maximum Slip Speed
1640 rpm
Specifications Maximum Speed
2450 rpm
Specifications Static Torque At 100 Pounds Per Square Inch Psi 7
38400 lbf·in | 4340 N·m
Weight And Inertia Ring And Fd Inertia
9 lb·ft² | 0.38 kg·m²
Weight And Inertia Ring And Fd Weight
9.2 lb | 4.2 kg
Weight And Inertia Total Inertia
47 lb·ft² | 2.0 kg·m²
Weight And Inertia Total Weight
191 lb | 87 kg
