Multi-Flex 128 Series High Pressure Hot Tap Insertion Plug - 15 Inch
Multi-Flex 128 Series High Pressure Hot Tap Insertion Plug - 15 Inch
SKU:POW-bf3f71
High pressure hot tap insertion plug for pressurized pipelines, featuring durability and flexibility for easy repairs and live insertions.
Regular price
$499.99
Regular price
Sale price
$499.99
Unit price
per
Initiate Order
Multi-Flex 128 Series High Pressure Hot Tap Insertion Plug - 15 Inch
$499.99
Quantity: 1
Claim Your Seller Account
Multi-Flex 128 Series High Pressure Hot Tap Insertion Plug - 15 Inch
$499.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Multi-Flex 128 Series High Pressure Hot Tap Insertion Plug is engineered for pressurized pipelines, offering a reliable solution for live insertion. With a maximum plug diameter of 15 inches and hot tap plug diameter of 5.5 inches, this plug ensures easy installation through a hot tap even around 90-degree bends. Its tough materials and woven ballistic nylon reinforced polyurethane outer ply guarantee durability, while the flexibility allows seamless navigation around corners. Ideal for repairs, this plug stops flow efficiently and is customizable to meet specific requirements, making it a versatile choice for institutional and government procurement.
Product Specifications
Bore Range Maximum Bore Range
10.00 in | 254 mm
Bore Range Minimum Bore Range
8.25 in | 209.6 mm

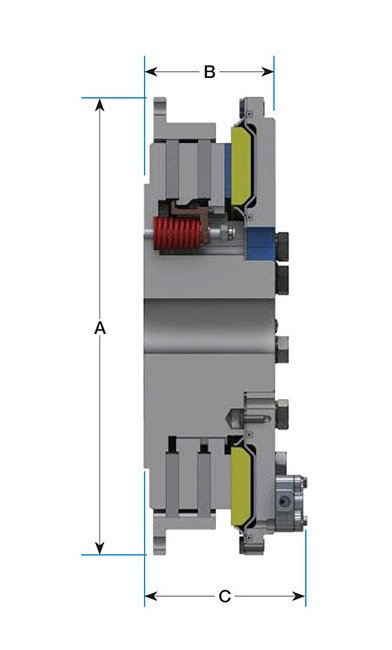

Dimensions Dimension A
46.745 in | 1187.32 mm
Dimensions Dimension B
13-1/2 in | 342.9 mm
Dimensions Dimension C
16-1/4 in | 413.3 mm
Features Features
A large diaphragm provides high torque capacity throughout the life of friction discsOversized release springs ensure quick positive disengagementPlate separators reduce and minimize dragMechanical lockup function is standard on all sizes
Note Note
Consult WPT® Application Engineering for application assistance and applicable service factors.
Specifications Lining Area
4600 in² | 29600 cm²
Specifications Maximum Slip Speed
550 rpm
Specifications Maximum Speed
750 rpm
Specifications Static Torque At 100 Pounds Per Square Inch Psi 7
3370000 lbf·in | 380800 N·m
Weight And Inertia Ring And Fd Inertia
3400 lb·ft² | 140 kg·m²
Weight And Inertia Ring And Fd Weight
3300 lb | 1500 kg
Weight And Inertia Total Inertia
8500 lb·ft² | 360 kg·m²
Weight And Inertia Total Weight
4650 lb | 2100 kg
