Multi-Flex 128 Series Hot Tap Insertion Plug
Multi-Flex 128 Series Hot Tap Insertion Plug
SKU:POW-8a4306
High pressure hot tap insertion plug for pressurized pipelines, offering easy live insertion and flow stoppage during repairs.
Regular price
$899.00
Regular price
Sale price
$899.00
Unit price
per
Initiate Order
Multi-Flex 128 Series Hot Tap Insertion Plug
$899.00
Quantity: 1
Claim Your Seller Account
Multi-Flex 128 Series Hot Tap Insertion Plug
$899.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Multi-Flex 128 Series 36 Inch High Pressure Hot Tap Insertion Plug is designed for pressurized pipelines, offering easy live insertion through hot taps. Featuring an internal stiffener and a directional shoe for installation around a 90-degree bend, this plug is crafted with tough materials for long-term durability. Its small deflated diameter and flexibility allow for seamless navigation around corners, making it ideal for flow stoppage during repairs. While generally made with a Nylon reinforced Polyurethane outer ply, customization options are available to meet specific requirements.
Product Specifications
Bore Range Maximum Bore Range
4.55 in | 115.6 mm
Bore Range Minimum Bore Range
2.94 in | 74.6 mm

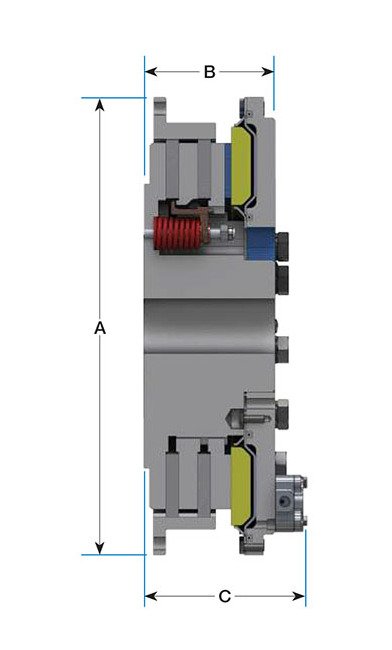

Dimensions Dimension A
22.496 in | 571.40 mm
Dimensions Dimension B
4-3/4 in | 121.9 mm
Dimensions Dimension C
6-1/4 in | 159.5 mm
Features Features
A large diaphragm provides high torque capacity throughout the life of friction discsOversized release springs ensure quick positive disengagementPlate separators reduce and minimize dragMechanical lockup function is standard on all sizes
Note Note
Consult WPT® Application Engineering for application assistance and applicable service factors.
Specifications Lining Area
270 in² | 1760 cm²
Specifications Maximum Slip Speed
1270 rpm
Specifications Maximum Speed
2000 rpm
Specifications Static Torque At 100 Pounds Per Square Inch Psi 7
78500 lbf·in | 8870 N·m
Weight And Inertia Ring And Fd Inertia
20 lb·ft² | 0.84 kg·m²
Weight And Inertia Ring And Fd Weight
20 lb | 9.1 kg
Weight And Inertia Total Inertia
120 lb·ft² | 4.9 kg·m²
Weight And Inertia Total Weight
309 lb | 140 kg
