The Multi-Flex 129 Series 33-inch Block and Bleed Plug by Multi-Flex™ and Petersen® is a cutting-edge dual-seal inflatable plug designed for secure isolation of hazardous substances. With a vent for monitoring seal integrity and introducing inert gas or water, this plug ensures a reliable seal. Its robust specifications cater to diverse size, pressure, chemical, and temperature needs, making it a versatile solution for industrial requirements.
Product Specifications

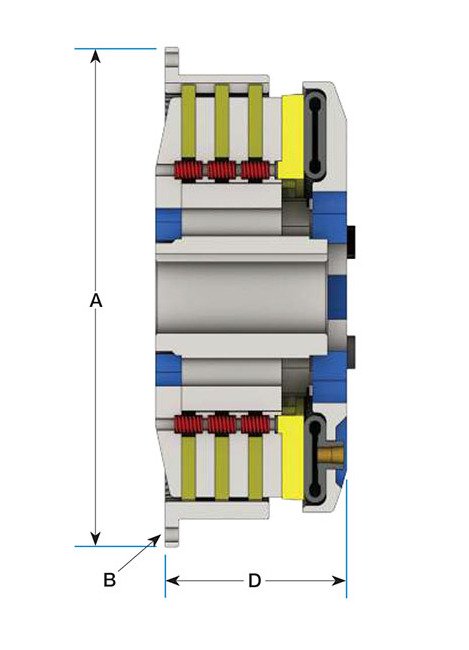

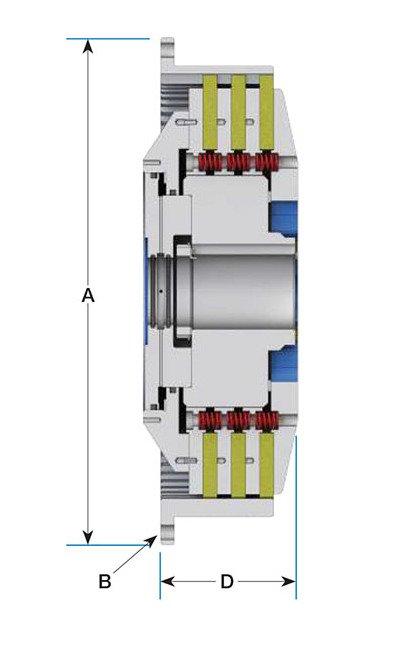

Dimensions Diameter B
17/32 in | 13.5 mm
Dimensions Dimension A
18.375 in | 466.73 mm
Dimensions Dimension C
6-5/8 in | 168.3 mm
Dimensions Dimension D
4-5/8 in | 118.9 mm
Dimensions Hole Circle B
17.25 in | 438.2 mm
Features Features
Coil springs standardAvailable pneumatic or hydraulic actuationHeavy-duty gear tooth friction disc
Note Note
Consult WPT® Application Engineering for application assistance and applicable service factors.Larger bore sizes may be accommodated, consult WPT® Application Engineering.Dynamic torque is 75% of static torque.
Specifications Dimension A Tolerance
+0.003 in | -0.005 in | +0.00 mm | -0.13 mm
Specifications Lining Area
320 in² | 2050 cm²
Specifications Maximum Input Torque
2500 lbf.ft | 3390 N·m
Specifications Maximum Speed
2300 rpm
Specifications Quantity
8
Specifications Ring Type
A
