Multi-Flex Point Repair Packers 30-inch

Name: Multi-Flex Point Repair Packers 30-inch
Brand: WPT Power Corporation
SKU: WOR-35eed9
Price: 799.99 USD
Availability: OutOfStock

SKU:WOR-35eed9

Versatile 30-inch Point Repair Packer for efficient pipeline repairs

$799.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Multi-Flex™ 119 Series 30-inch Maximum Pipe Diameter Point Repair Packers/Carrier with By-Pass offers a versatile solution for pipeline repairs. Made from high strength flexible materials, this packer ensures smooth and even relining without the need for multiple packer sizes. With connections for air, hot water, steam inflation, and recirculation, installation and removal are quick and easy. The by-pass design allows flow-through during repairs, enhancing efficiency. Lightweight yet durable, this packer is ideal for institutional and government buyers seeking reliable repair solutions.

Product Specifications

Bare Drum Bare Drum Line Pull

9000 lbf | 40 kN

Bare Drum Bare Drum Line Speed

14 ft/min | 4.3 m/min

Drum Capacity Cable Length Diameter

10 mm | 30 m

Drum Capacity Drum Capacity

3/8 in | 98 ft

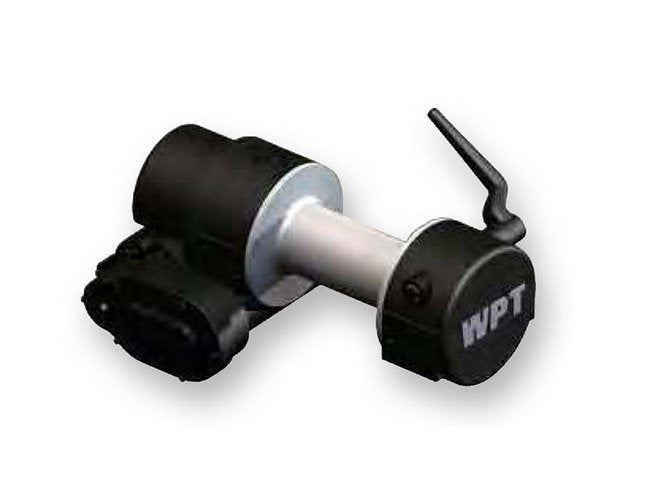

Features Features

Easy to install with 12 or 24 volt DC connectionRobust worm gear design that holds the load even if the power fails or is interruptedLever actuated clutch allows cable to be unspooled rapidlyA rugged cast ductile steel drum that withstands high impact loads and cable wearCast aluminum worm and clutch housing and cover making it extremely strong and lightweightAvailable with manual or air shift operation

Full Drum Full Drum Line Pull

5800 lbf | 26 kN

Full Drum Full Drum Line Speed

22 ft/min | 6.7 m/min

Specifications Gear Ratio

470:1

Specifications Voltage

12 V | 24 V

Specifications Weight

84 lb | 38 kg

Multi-Flex Point Repair Packers 30-inch
