Multi-Port Needle Valve, 3/4 x 1/2 in Thread Size
Multi-Port Needle Valve, 3/4 x 1/2 in Thread Size
SKU:MUL-697195
Reliable Multi-Port Needle Valve for precise control in high-pressure systems.
Regular price
$54.99
Regular price
Sale price
$54.99
Unit price
per
Initiate Order
Multi-Port Needle Valve, 3/4 x 1/2 in Thread Size
$54.99
Quantity: 1
Claim Your Seller Account
Multi-Port Needle Valve, 3/4 x 1/2 in Thread Size
$54.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

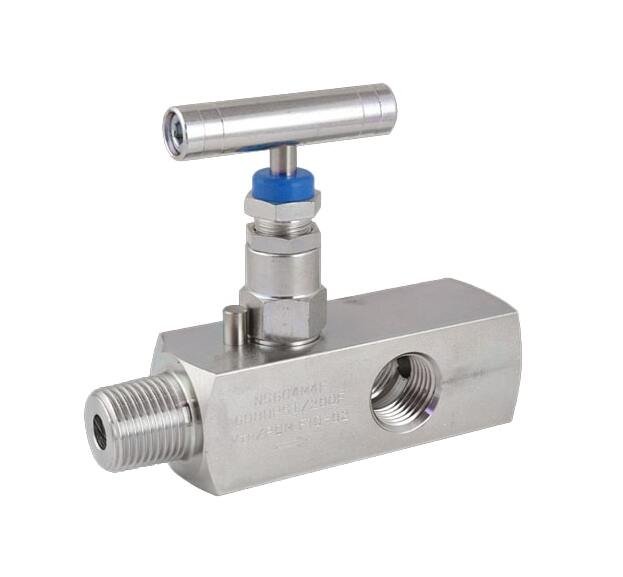

The Multi-Port Needle Valve, featuring a 3/4 x 1/2 in Male x Female NPT thread type, is a stainless steel valve known for its robust performance. With a working pressure of 6000 psi and a PolyOxyMethylene Soft Seat, this valve ensures reliability and durability. Measuring 4.45 x 2.5 x 1.42 inches (Dimensions A, B, C), it meets strict industry standards like ASME B1.20.1 and NACE compliance, guaranteeing quality and safety. Ideal for demanding applications requiring precision control.
Product Specifications
Features Features
Threads Conform to ASME B1.20.1
Technical Specs Dimension A
4.45 in
Technical Specs Dimension B
2.5 in
Technical Specs Dimension C
1.42 in
Technical Specs Dimension D
2.4 in
Technical Specs Dimension E
3.54 in
Technical Specs Industry Standards
American Society of Mechanical Engineers (ASME) B1.20.1 | National Association of Corrosion Engineers (NACE) Compliant
Technical Specs Material
Stainless
Technical Specs Seat Material
PolyOxyMethylene (POM) Soft Seat
Technical Specs Thread Size
3/4 x 1/2 in
Technical Specs Thread Type
Male x Female National Pipe Thread (NPT)
Technical Specs Working Pressure
6000 psi
