Multi-size Domehead™ Front Plug for Pipe Plugs
Multi-size Domehead™ Front Plug for Pipe Plugs
SKU:INF-334ff6
Cutting-edge inflatable pipe plug for maximum safety, efficiency, and versatility. Ideal for air testing and pressure monitoring.
Regular price
$299.99
Regular price
Sale price
$299.99
Unit price
per
Initiate Order
Multi-size Domehead™ Front Plug for Pipe Plugs
$299.99
Quantity: 1
Claim Your Seller Account
Multi-size Domehead™ Front Plug for Pipe Plugs
$299.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

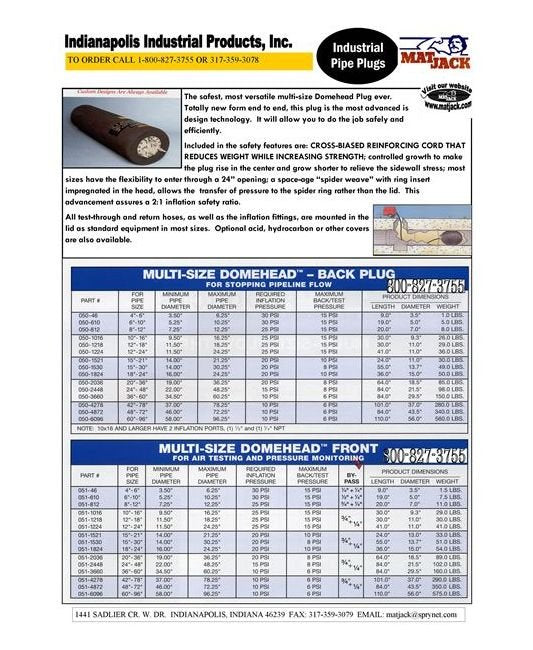

The Multi-size Domehead™ Front Plug is a cutting-edge inflatable pipe plug designed for maximum safety, efficiency, and versatility. Featuring a Cross-Biased Reinforcing Cord for reduced weight and increased strength, controlled growth technology, and a space-age 'spider weave' with ring insert, this plug ensures a 2:1 inflation safety ratio. With a pipe size range of 12-18 inches, required inflation pressure of 25 psi, and a maximum back/test pressure of 15 psi, this plug is ideal for air testing and pressure monitoring. Standard equipment includes test-through and return hoses, inflation fittings, with optional covers available for various applications.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications By Pass
3/4 + 1/4 in.
Specifications Diameter
11.0 in.
Specifications Length
30.0 in.
Specifications Maximum Backtest Pressure
15 psi
Specifications Maximum Pipe Diameter
18.25 in.
Specifications Minimum Pipe Diameter
11.50 in.
Specifications Pipe Size
12 - 18 in.
Specifications Required Inflation Pressure
25 psi
Specifications Weight
30.0 lbs.
