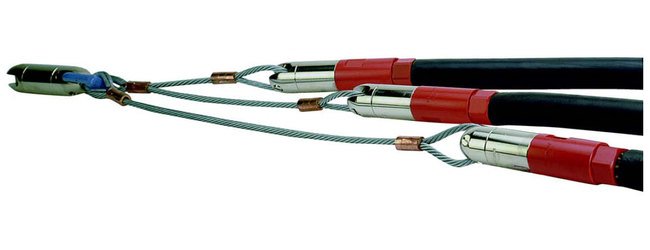

The Multiple Pulling Harness Set features a 5 Way 1/4" (6 mm) cable designed for heavy-duty applications. With a working load of 1400 lb. per leg and a combined load of 4200 lb., this harness ensures secure and efficient pulling operations. The harnesses are available with various specifications to meet different requirements, providing maximum versatility and performance. Designed for durability and reliability, this harness set is ideal for both consumer and institutional buyers seeking top-quality pulling products.
Product Specifications
Specifications Lead Ring Diameter C In
0.62
Specifications Lead Ring Diameter C Mm
16
Specifications Leg Diameter D In
0.25
Specifications Leg Diameter D Mm
6
Specifications Max Width A In
3.75
Specifications Max Width A Mm
95
Specifications Note
10 & 12 Way 3/8" (10 mm) harnesses only have a single stagger. All other harnesses are sequentially staggered.
Specifications Separation Between Legs B In
14
Specifications Separation Between Legs B Mm
356
Specifications Working Load Combined Lb
4200
Specifications Working Load Combined N
18682
Specifications Working Load Per Leg Lb
1400
Specifications Working Load Per Leg N
6228
