The 136-0 Series Municipal Style Kevlar® Reinforced Rubber Plug is engineered for heavy-duty applications, featuring a maximum pipe diameter of 60 inches and a sturdy Kevlar® reinforced construction for durability. With a by-pass size of 6 inches and threaded top, this plug ensures secure sealing and efficient maintenance. Designed with compliance in mind, this plug meets stringent industry standards for municipal use, offering reliable performance and ease of installation.
Product Specifications

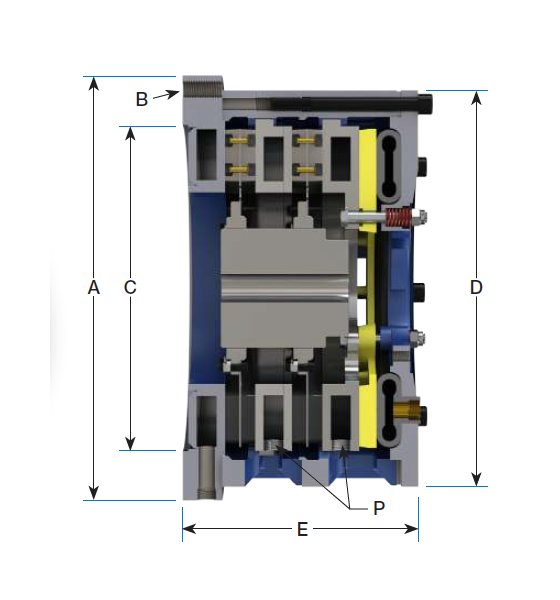

Dimensions Diameter B
21/32 in
Dimensions Dimension A
32.750 in | 831.85 mm
Dimensions Dimension A Tolerance
+0.000 in | -0.003 in | +0.00 mm | -0.08 mm
Dimensions Dimension C
27.375 in | 695.33 mm
Dimensions Dimension C Tolerance
+0.003 in | -0.000 in | +0.08 mm | -0.000 mm
Dimensions Dimension D
31 in | 787.4 mm
Dimensions Dimension E
10 in | 254.0 mm
Dimensions Hole Circle B
31.50 in | 800.1 mm
Dimensions Imperial Mounting Coolant Ports P
1/2
Dimensions Imperial Mounting Thread Type
National Pipe Thread (NPT)
Dimensions Quantity
14
Features Features
High cycle lifePredictable preventative maintenanceLow-inertia drive plate configurationDurable steel water jacket designStandardized mounting for OEM applications, rebuilds, or retrofitsMaximum heat transferLow-inertia drive plate design
Note Note
Consult WPT® Application Engineering for application assistance, service factors, specifications, and detailed drawings/3D models.
Specifications Heat Dissipation Capacity
110 hp | 80.5 kW
Specifications Lining Area
350 in² | 2300 cm²
Specifications Maximum Bore Range
6.30 in | 160.0 mm
Specifications Maximum Speed Hub And Drive Plate
1270 rpm
Specifications Maximum Speed Slip
850 rpm
Specifications Minimum Bore Range
3.25 in | 82.6 mm
Specifications Minimum Water Flow
16 gal/min | 61 L/min
Specifications Static Torque At 100 Pounds Per Square Inch Psi 7
145000 lbf·in | 16400 N·m
Weight And Inertia Hub And Drive Plate Dp Inertia
120 lb·ft² | 5.2 kg·m²
Weight And Inertia Hub And Drive Plate Dp Weight
240 lb | 110 kg
Weight And Inertia Total Weight
990 lb | 450 kg
