Music Wire Compression Spring - 0.18" OD, 0.012" WD, 0.75" Free Length

Name: Music Wire Compression Spring - 0.18" OD, 0.012" WD, 0.75" Free Length
Brand: Murphy & Read Spring Mfg. Co., Inc.
SKU: COM-ad972a
Price: 5.83 USD
Availability: OutOfStock

SKU:COM-ad972a

Precision Music Wire Compression Spring - 0.18" OD, 0.012" WD, 0.75" Free Length

$5.83

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

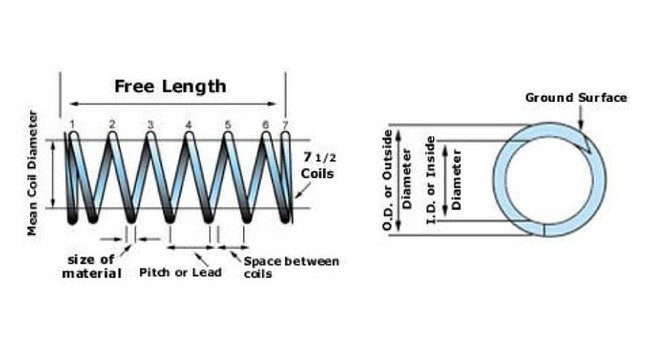

Meet your compression spring needs with precision using our Music Wire Compression Spring. This high-quality spring features an Outside Diameter of 0.18 inches, Wire Diameter of 0.012 inches, and a Free Length of 0.75 inches. Designed for optimal performance, it offers a Load at L1 of 0.48 (MW), 9.333 Total Coils, and Spring Rates of 1 (MW) and 0.87 (SS). Ideal for a range of applications, this spring ensures reliability and durability in every use.

Product Specifications

Specifications Ends

FEG

Specifications Free Length

0.750

Specifications Length L1

0.271

Specifications List Price

5.83 USD

Specifications Load At L1 Mw

0.48

Specifications Load Ss

0.42

Specifications Material

Music Wire

Specifications Outside Diameter

0.18

Specifications Solid Ht

0.112

Specifications Spring Rate Mw

Specifications Spring Rate Ss

0.87

Specifications Total Coils

9.333

Specifications Type

Compression

Specifications Wire Diameter

0.012

Music Wire Compression Spring - 0.18" OD, 0.012" WD, 0.75" Free Length
