Music Wire Compression Spring - 0.18" OD, 0.032" WD, 1" Free Length

Name: Music Wire Compression Spring - 0.18" OD, 0.032" WD, 1" Free Length
Brand: Murphy & Read Spring Mfg. Co., Inc.
SKU: COM-9a609d
Price: 5.83 USD
Availability: OutOfStock

SKU:COM-9a609d

High-performance Music Wire Compression Spring for optimal load support and durability.

$5.83

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

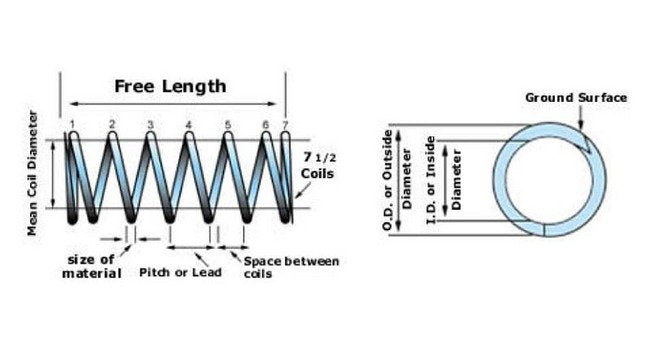

Experience optimal compression performance with our Music Wire Compression Spring featuring an outside diameter of 0.18 inches, wire diameter of 0.032 inches, and a free length of 1 inch. Crafted from high-quality music wire, this spring offers a superior spring rate of 29.33 (MW) and 25.13 (SS), providing reliable load support at 9.43 (MW) and 7.94 (SS) pounds. With precise engineering, 17.844 total coils, and FEG ends, this spring ensures durability and efficiency in various applications. Ideal for consumer and institutional use, this compression spring meets stringent industry standards for exceptional performance.

Product Specifications

Specifications Ends

FEG

Specifications Free Length

1.000

Specifications Length L1

0.678

Specifications List Price

5.83 USD

Specifications Load At L1 Mw

9.43

Specifications Load Ss

7.94

Specifications Material

Music Wire

Specifications Outside Diameter

0.18

Specifications Solid Ht

0.571

Specifications Spring Rate Mw

29.33

Specifications Spring Rate Ss

25.13

Specifications Total Coils

17.844

Specifications Type

Compression

Specifications Wire Diameter

0.032

Music Wire Compression Spring - 0.18" OD, 0.032" WD, 1" Free Length
