Music Wire Compression Spring - 0.24" OD, 0.022" WD, 0.563" Free Length

Name: Music Wire Compression Spring - 0.24" OD, 0.022" WD, 0.563" Free Length
Brand: Murphy & Read Spring Mfg. Co., Inc.
SKU: COM-e17308
Price: 5.83 USD
Availability: OutOfStock

SKU:COM-e17308

High-performance Music Wire Compression Spring - 0.24" OD, 0.022" WD, 0.563" Free Length - Ideal for diverse applications.

$5.83

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

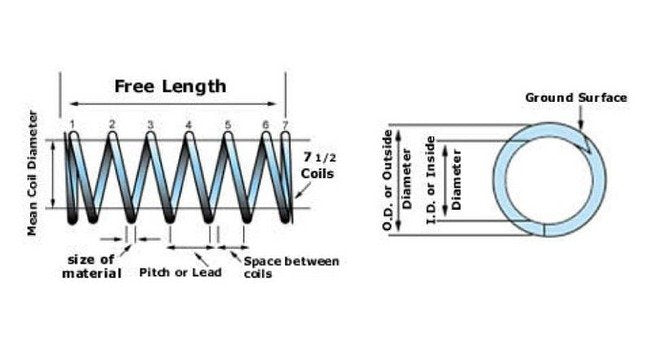

Experience exceptional performance with our Music Wire Compression Spring featuring an outside diameter of 0.24 inches, wire diameter of 0.022 inches, and a free length of 0.563 inches. Crafted for durability and precision, this spring offers a spring rate of 7.55 (MW) / 6.47 (SS) ensuring reliable compression. Ideal for diverse applications, this high-quality spring provides a load capacity of 2.4 (MW) / 2.05 (SS) and complies with industry standards for robust functionality.

Product Specifications

Specifications Ends

FEG

Specifications Free Length

0.563

Specifications Length L1

0.245

Specifications List Price

5.83 USD

Specifications Load At L1 Mw

2.4

Specifications Load Ss

2.05

Specifications Material

Music Wire

Specifications Outside Diameter

0.24

Specifications Solid Ht

0.139

Specifications Spring Rate Mw

7.55

Specifications Spring Rate Ss

6.47

Specifications Total Coils

6.318

Specifications Type

Compression

Specifications Wire Diameter

0.022
