Music Wire Compression Spring - 0.24" OD, 0.035" WD, 0.938" Free Length

Name: Music Wire Compression Spring - 0.24" OD, 0.035" WD, 0.938" Free Length
Brand: Murphy & Read Spring Mfg. Co., Inc.
SKU: COM-29bfad
Price: 5.83 USD
Availability: OutOfStock

SKU:COM-29bfad

High-quality Music Wire Compression Spring with precise dimensions and reliable performance

$5.83

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

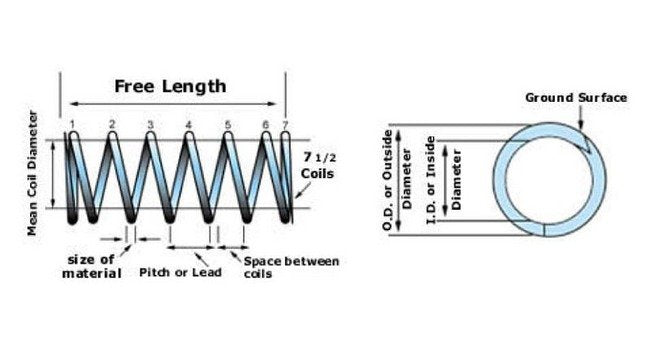

The Music Wire Compression Spring features precise dimensions with a 0.24-inch outside diameter, 0.035-inch wire diameter, and a free length of 0.938 inches. Crafted from high-quality music wire, this compression spring offers a spring rate of 23.84 (MW) and 20.42 (SS), ensuring reliable performance under various loads. With 12.514 total coils and FEG ends, it provides durability and consistent compression forces. Ideal for applications requiring dependable spring performance and compliance with industry standards.

Product Specifications

Specifications Ends

FEG

Specifications Free Length

0.938

Specifications Length L1

0.563

Specifications List Price

5.83 USD

Specifications Load At L1 Mw

8.94

Specifications Load Ss

7.58

Specifications Material

Music Wire

Specifications Outside Diameter

0.24

Specifications Solid Ht

0.438

Specifications Spring Rate Mw

23.84

Specifications Spring Rate Ss

20.42

Specifications Total Coils

12.514

Specifications Type

Compression

Specifications Wire Diameter

0.035
