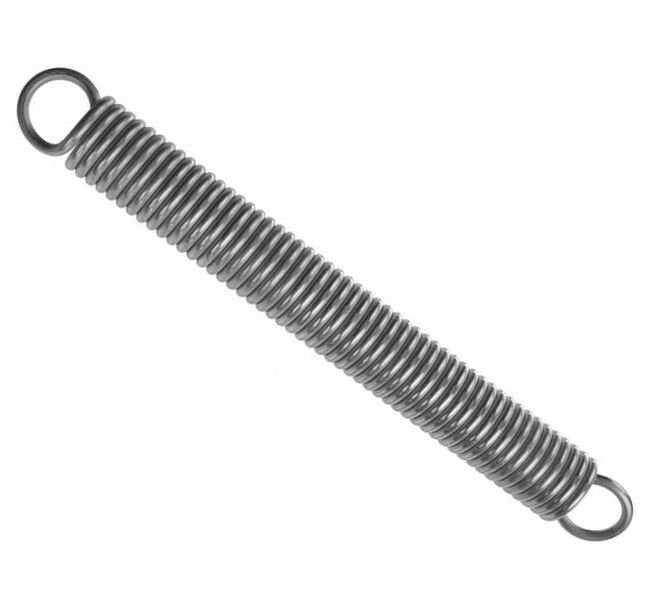

Music Wire Extension Spring
Music Wire Extension Spring
SKU:SPR-176c38
Enhance your mechanisms with the precision-crafted Music Wire Extension Spring for optimal performance.
Regular price
$9.99
Regular price
Sale price
$9.99
Unit price
per
Initiate Order
Music Wire Extension Spring
$9.99
Quantity: 1
Claim Your Seller Account
Music Wire Extension Spring
$9.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Music Wire Extension Spring is a precision-engineered coiled spring designed for applications such as cable return, balance mechanisms, belt tensioners, and more. Constructed from ASTM-A228 or AMS-5112 music wire, this spring offers a standard part solution with a height of 3 inches, a diameter of 0.5 inches, and a wire diameter of 0.055 inches. With an initial tension of 1.20 pounds and a spring rate of 3.9 lbs/in, this extension spring is meticulously crafted to meet strict stress levels and manufacturing limits, ensuring reliable performance and longevity.
Product Specifications
Specifications Application Uses
Cable Return, Balance, Belt Tensioner, etc.
Specifications Country Of Origin
US
Specifications Depth
0.500 Inch
Specifications Ends
Full Twist Loop
Specifications Featuresadvantagesbenefits
Standard Part
Specifications Free Length In
3.00 Inch
Specifications Height
3.000 Inch
Specifications Initial Tension Lbs
1.20 Pound
Specifications Material
ASTM-A228 or AMS-5112, Music Wire
Specifications Outside Dia In
0.500 Inch
Specifications Spring Rate Lbsin
3.9 lbs/in
Specifications Warning
Prop 65 Warning: This product may contain chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Specifications Weight
0.024028 Pound
Specifications Width
0.500 Inch
Specifications Wire Dia In
0.055 Inch
