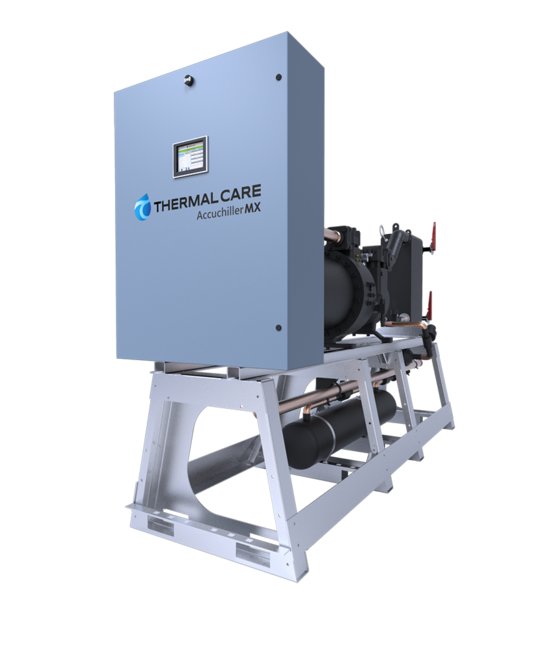

MX Series industrial central chillers use a compact rotary screw compressor for greater reliability, energy efficiency and noise reduction. Each independent refrigeration circuit contains a brazed plate evaporator for greater chiller reliability and features a powerful controller to monitor, control and maintain stable and reliable operation of the chiller.
Product Specifications
Additional Information
50 to 125 tons per module, up to 6 modulesWater cooled condenser or remote air cooled condenser modelsModular design allows up to six multiple circuits to be linked together with a common control systemCompact size with easy access to controls and componentsRotary screw compressor with integral oil separator and filterCompressor unloading for capacity controlStainless steel brazed plate evaporatorElectronic expansion valveR134a refrigerantNEMA-12 C-UL 508A listed and labeled control panelAlarm horn with silence buttonMX Series chillers now come standard with Dynamic Lift Technology to continuously calculate the lowest allowable refrigerant pressure for any combination of operating conditions for maximize chiller energy savings and more stable and smooth control of refrigerant pressure, especially under varying load and condenser inlet temperatures.
Available Options
Rotary non-fused disconnect switchFlange disconnect switchCondenser coil coating (remote air-cooled condenser chillers)Alarm horn stack lightModBUS RTU, BACnet or LonWorks communications port5-year compressor parts warranty
Dimensions Height
81 in
Dimensions Length
140 in
Dimensions Width
36 in

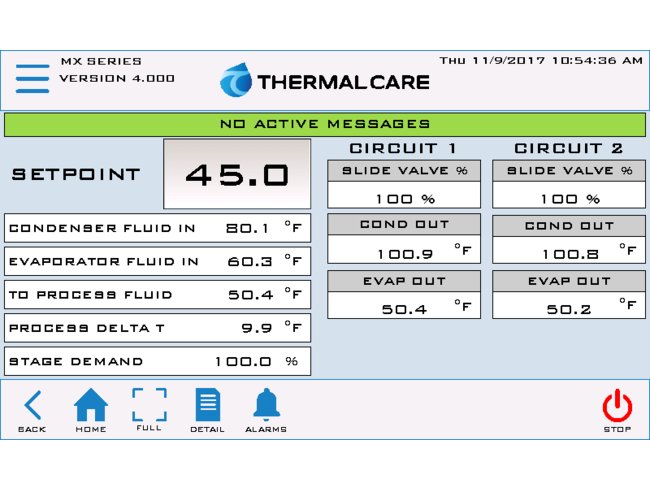

Programmable Logic Control Plc System
Powerful integrated control for MX Series central chillers.
Specifications Compressor Quantity
1
Specifications Condenser Water Inlet And Outlet Flange
3 in
Specifications Cooling Capacity
50 ton
Specifications Note For Cooling Capacity
Cooling capacity when cooling water with 50 ºF set point, 60 ºF return, 95 ºF condenser air, R134a refrigerant.
Specifications Operating Weight
3145 lb
Specifications Process Fluid Inlet And Outlet Flange
3 in
Specifications Series
MX
Specifications Set Point Temperature Range
20 to 75 ºF
Specifications Shipping Weight
2965 lb
