N-MCX Straight Adaptor, Male N Plug to Female MCX Jack

Name: N-MCX Straight Adaptor, Male N Plug to Female MCX Jack
Brand: C. W. Swift & Associates, Inc.
SKU: ADA-59c69b
Price: 12.99 USD
Availability: OutOfStock

SKU:ADA-59c69b

High-quality N-MCX straight adaptor for secure male N plug to female MCX jack connections. VSWR<1.03 up to 6 GHz.

$12.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

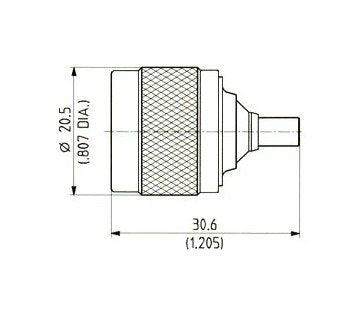

The N-MCX Straight Adaptor facilitates seamless connection between devices with an N plug and MCX jack. Crafted with precision using brass materials, this adaptor ensures secure signal transmission with a VSWR of less than 1.03 for frequencies up to 6 GHz. Its gold-plated MCX and SUCOPLATE-coated N connectors enhance conductivity and durability. Ideal for applications requiring high performance and reliability, this adaptor is designed for straightforward installation and compatibility with N-MCX configurations.

Product Specifications

Specifications Configuration

straight

Specifications Connector Series

N-MCX

Specifications Gender 1

male (plug)

Specifications Gender 2

female (jack)

Specifications Interface 1

MCX | N

Specifications Interface 2

MCX | N

Specifications Material

MCX-brass, N-brass

Specifications Packaging

single

Specifications Plating

MCX-gold, N-SUCOPLATE

Specifications Vswr Dc 6 Ghz F

<1.03 + 0.3
