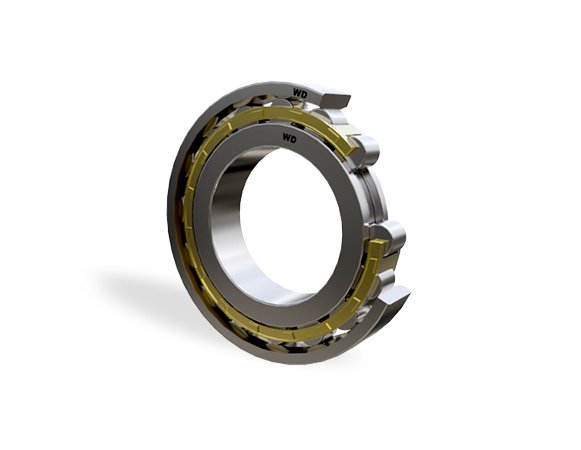

N/NJ/NU/NUP Single Row Cylindrical Roller Bearings

Name: N/NJ/NU/NUP Single Row Cylindrical Roller Bearings
Brand: WD Bearings
SKU: CYL-dbc747
Price: 49.99 USD
Availability: OutOfStock

SKU:CYL-dbc747

N/A

$49.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

Product Specifications

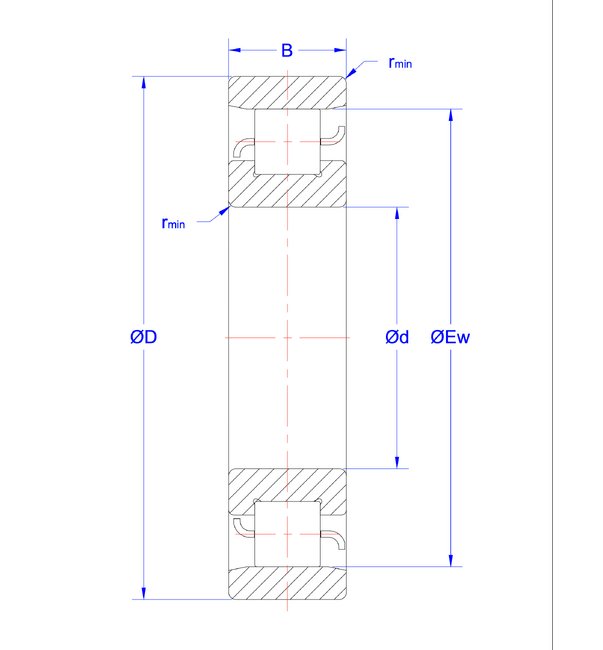

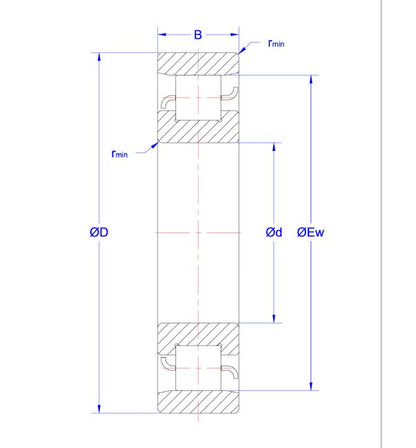

Dimensions Bore Diameter

130 mm

Dimensions Dimension Ew

209.5 mm

Dimensions Dimension Fw

153.5 mm

Dimensions Minimum Dimension Rs

3 mm

Dimensions Outside Diameter

230 mm

Dimensions Overall Bearing Width

40 mm

Load Rating Dynamic Cr Load Rating

360 kN

Load Rating Static Cor Load Rating

450 kN

Specifications Limiting Speed

3000 rpm

Specifications Mass

6.51 kg

N/NJ/NU/NUP Single Row Cylindrical Roller Bearings
