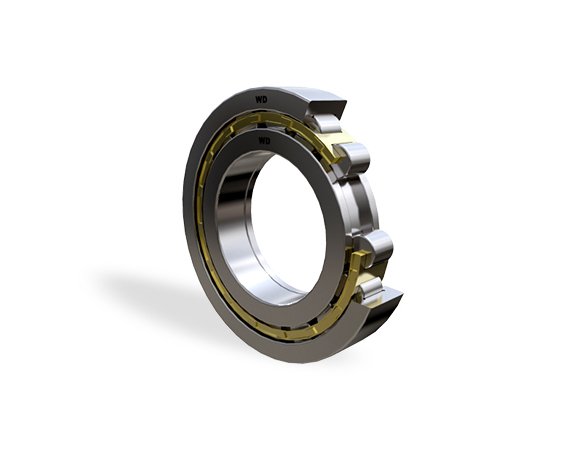

N/NJ/NU/NUP Single Row Cylindrical Roller Bearings

Name: N/NJ/NU/NUP Single Row Cylindrical Roller Bearings
Brand: WD Bearings
SKU: CYL-bfb53f
Price: 49.99 USD
Availability: OutOfStock

SKU:CYL-bfb53f

N/A

$49.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

Product Specifications

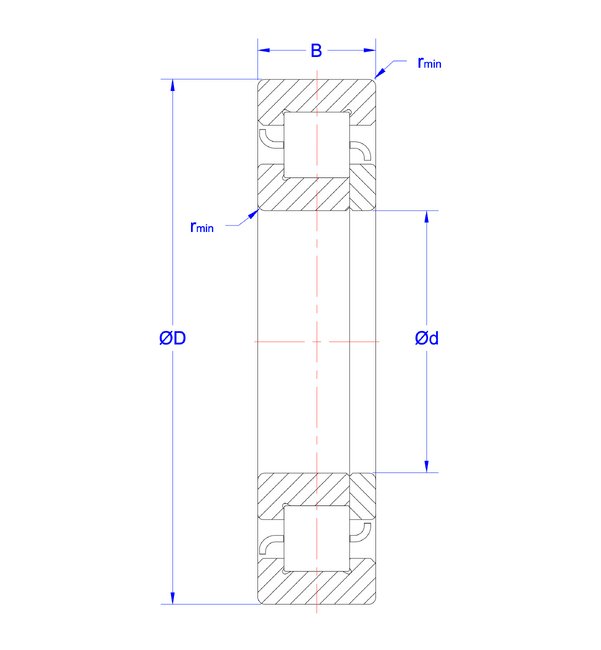

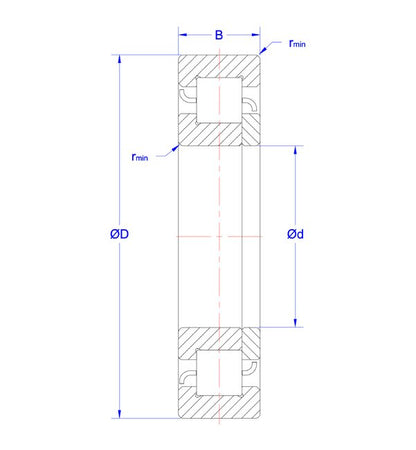

Dimensions Bore Diameter

45 mm

Dimensions Dimension Ew

76.5 mm

Dimensions Dimension Fw

54.5 mm

Dimensions Minimum Dimension Rs

1.1 mm

Dimensions Outside Diameter

85 mm

Dimensions Overall Bearing Width

23 mm

Load Rating Dynamic Cr Load Rating

73.5 kN

Load Rating Static Cor Load Rating

81.5 kN

Specifications Limiting Speed

8500 rpm

Specifications Mass

0.559 kg

N/NJ/NU/NUP Single Row Cylindrical Roller Bearings
