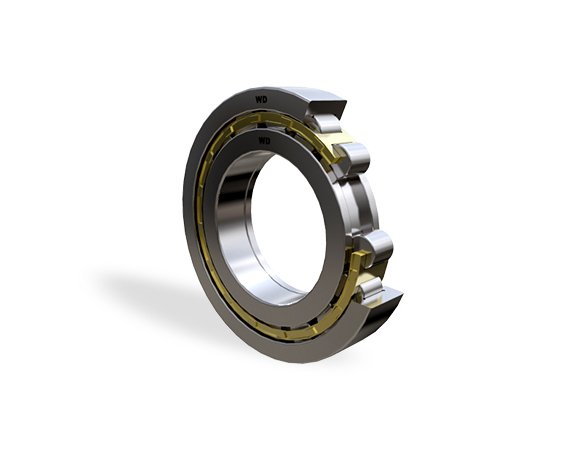

N/NJ/NU/NUP Single Row Cylindrical Roller Bearings

Name: N/NJ/NU/NUP Single Row Cylindrical Roller Bearings
Brand: WD Bearings
SKU: CYL-813b8d
Price: 49.99 USD
Availability: OutOfStock

SKU:CYL-813b8d

N/A

$49.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

Product Specifications

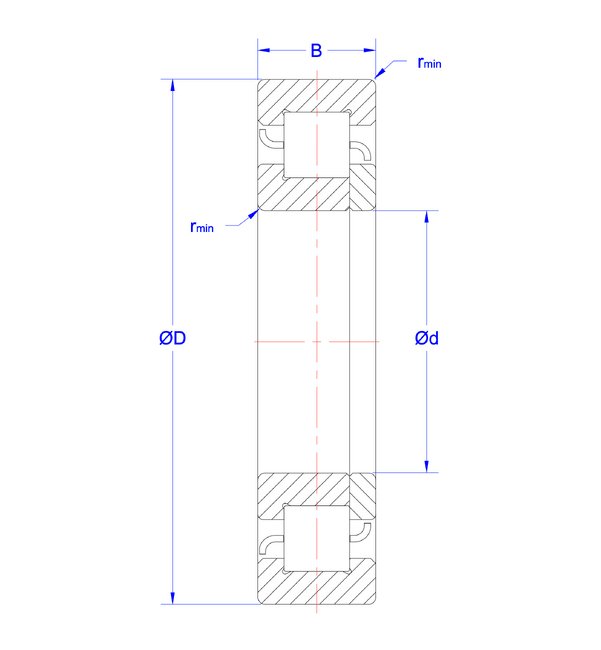

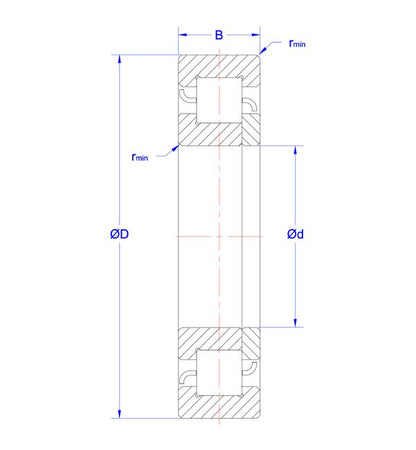

Dimensions Bore Diameter

65 mm

Dimensions Dimension Ew

124.5 mm

Dimensions Dimension Fw

82.5 mm

Dimensions Minimum Dimension Rs

2.1 mm

Dimensions Outside Diameter

140 mm

Dimensions Overall Bearing Width

48 mm

Load Rating Dynamic Cr Load Rating

245 kN

Load Rating Static Cor Load Rating

285 kN

Specifications Limiting Speed

4800 rpm

Specifications Mass

3.45 kg

N/NJ/NU/NUP Single Row Cylindrical Roller Bearings
