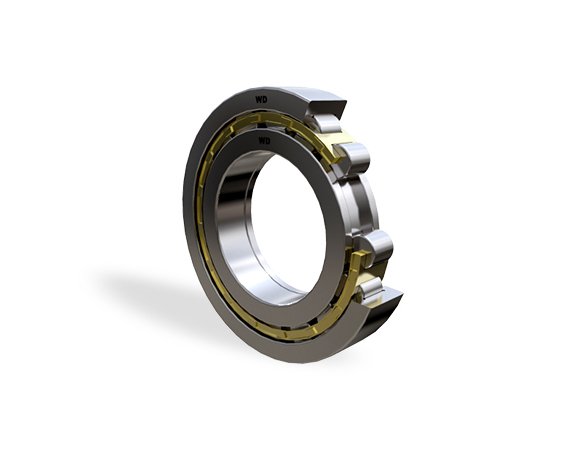

N/NJ/NU/NUP Single Row Cylindrical Roller Bearings

Name: N/NJ/NU/NUP Single Row Cylindrical Roller Bearings
Brand: WD Bearings
SKU: CYL-208624
Price: 49.99 USD
Availability: OutOfStock

SKU:CYL-208624

N/A

$49.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

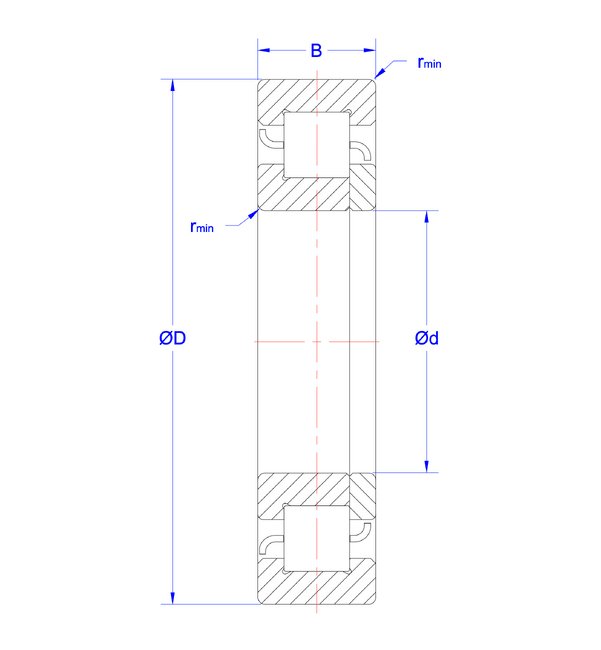

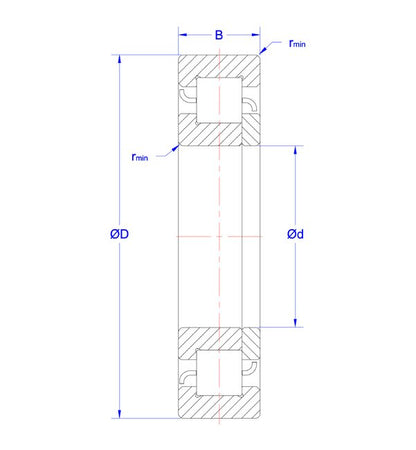

Product Specifications

Dimensions Bore Diameter

160 mm

Dimensions Dimension Ew

261 mm

Dimensions Dimension Fw

193 mm

Dimensions Minimum Dimension Rs

3 mm

Dimensions Outside Diameter

290 mm

Dimensions Overall Bearing Width

80 mm

Load Rating Dynamic Cr Load Rating

800 kN

Load Rating Static Cor Load Rating

1180 kN

Specifications Limiting Speed

3800 rpm

Specifications Mass

24.3 kg

N/NJ/NU/NUP Single Row Cylindrical Roller Bearings
