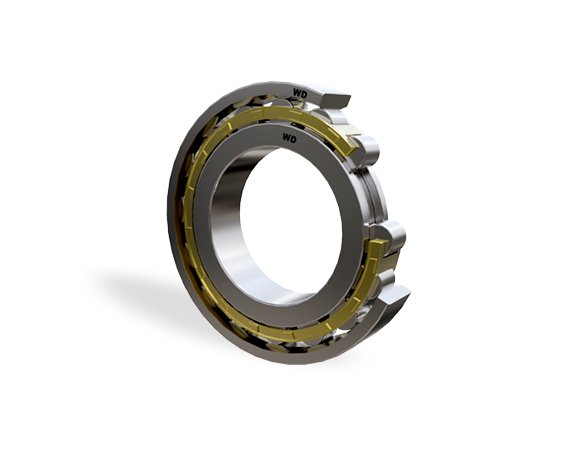

N/NJ/NU/NUP Single Row Cylindrical Roller Bearings

Name: N/NJ/NU/NUP Single Row Cylindrical Roller Bearings
Brand: WD Bearings
SKU: CYL-74edd1
Price: 49.99 USD
Availability: OutOfStock

SKU:CYL-74edd1

N/A

$49.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

Product Specifications

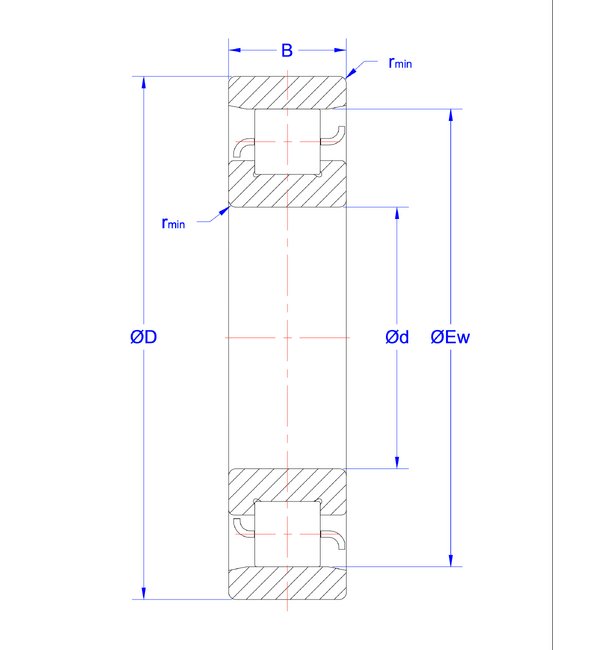

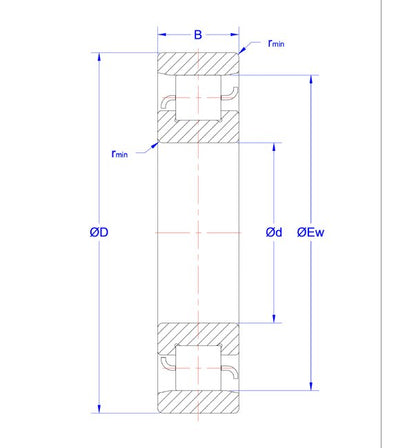

Dimensions Bore Diameter

17 mm

Dimensions Dimension Ew

35.1 mm

Dimensions Dimension Fw

22.1 mm

Dimensions Minimum Dimension Rs

0.6 mm

Dimensions Outside Diameter

40 mm

Dimensions Overall Bearing Width

12 mm

Load Rating Dynamic Cr Load Rating

17.6 kN

Load Rating Static Cor Load Rating

14.6 kN

Specifications Limiting Speed

18000 rpm

Specifications Mass

0.068 kg

N/NJ/NU/NUP Single Row Cylindrical Roller Bearings
