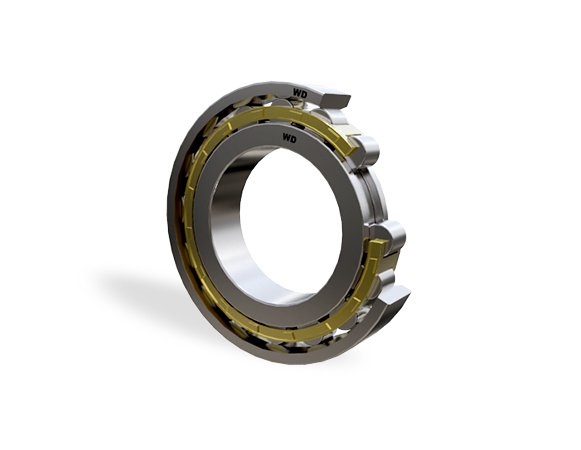

N/NJ/NU/NUP Single Row Cylindrical Roller Bearings

Name: N/NJ/NU/NUP Single Row Cylindrical Roller Bearings
Brand: WD Bearings
SKU: CYL-bb2476
Price: 49.99 USD
Availability: OutOfStock

SKU:CYL-bb2476

N/A

$49.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

Product Specifications

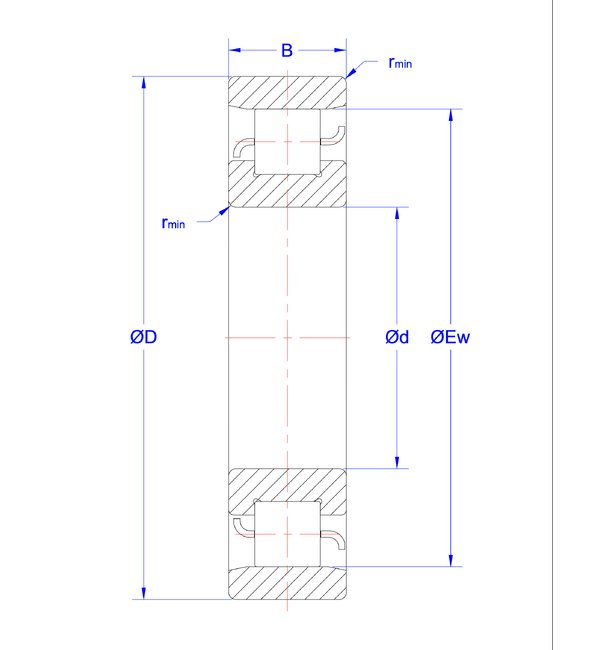

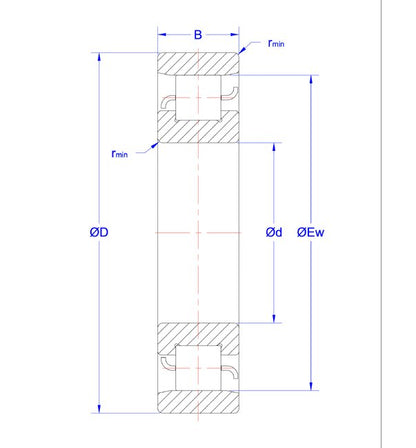

Dimensions Bore Diameter

80 mm

Dimensions Dimension Ew

151 mm

Dimensions Dimension Fw

101 mm

Dimensions Minimum Dimension Rs

2.1 mm

Dimensions Outside Diameter

170 mm

Dimensions Overall Bearing Width

39 mm

Load Rating Dynamic Cr Load Rating

255 kN

Load Rating Static Cor Load Rating

275 kN

Specifications Limiting Speed

3800 rpm

Specifications Mass

4.12 kg

N/NJ/NU/NUP Single Row Cylindrical Roller Bearings
