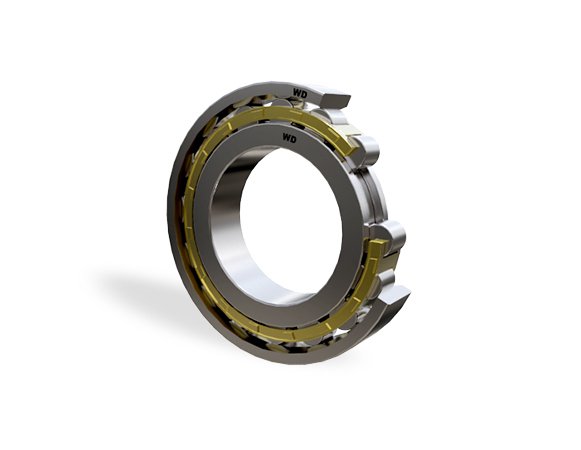

N/NJ/NU/NUP Single Row Cylindrical Roller Bearings

Name: N/NJ/NU/NUP Single Row Cylindrical Roller Bearings
Brand: WD Bearings
SKU: CYL-641d70
Price: 49.99 USD
Availability: OutOfStock

SKU:CYL-641d70

N/A

$49.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

Product Specifications

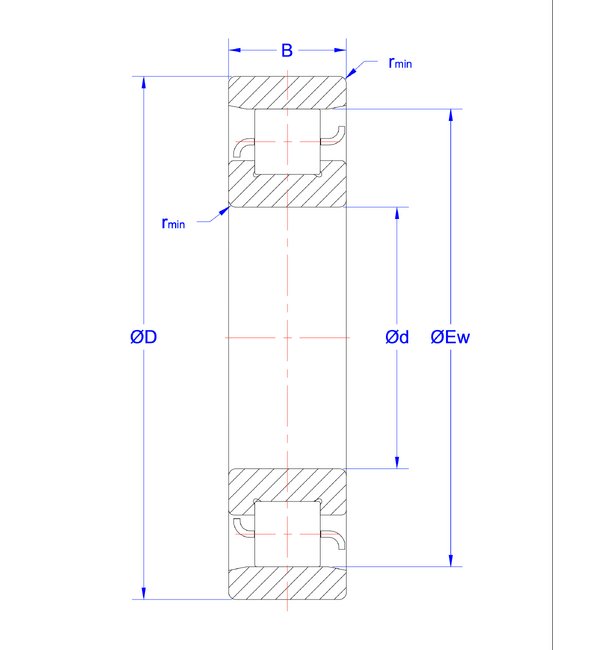

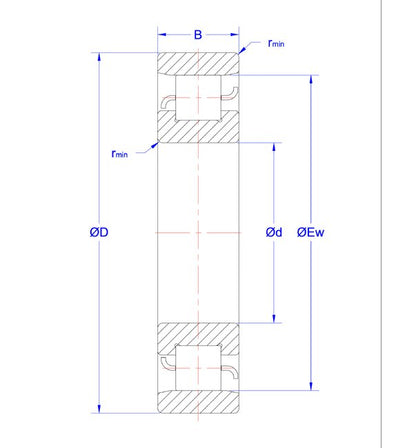

Dimensions Bore Diameter

90 mm

Dimensions Dimension Ew

145 mm

Dimensions Dimension Fw

107 mm

Dimensions Minimum Dimension Rs

2 mm

Dimensions Outside Diameter

160 mm

Dimensions Overall Bearing Width

30 mm

Load Rating Dynamic Cr Load Rating

183 kN

Load Rating Static Cor Load Rating

216 kN

Specifications Limiting Speed

4300 rpm

Specifications Mass

2.37 kg

N/NJ/NU/NUP Single Row Cylindrical Roller Bearings
