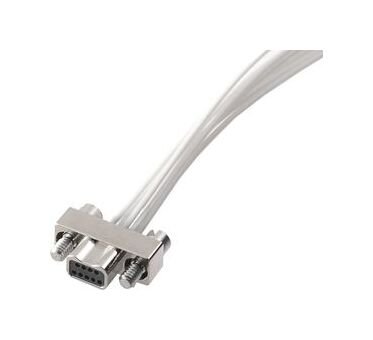

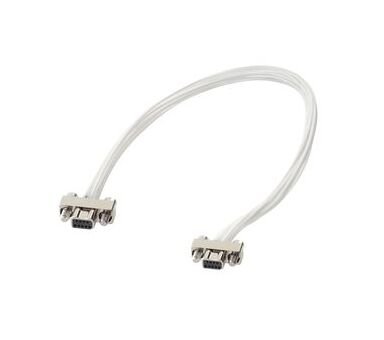

Nano Dual Row Connector with Insulated Wire
Nano Dual Row Connector with Insulated Wire
SKU:DSU-696bdb
Reliable Nano Dual Row Connector with Insulated Wire for aerospace, electronics, and medical applications. Compliant with MIL-DTL-32139 standards.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Nano Dual Row Connector with Insulated Wire
$29.99
Quantity: 1
Claim Your Seller Account
Nano Dual Row Connector with Insulated Wire
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

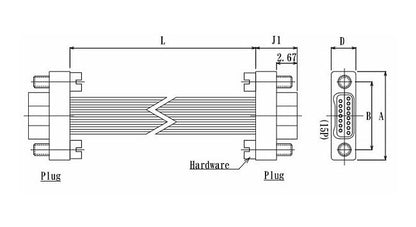

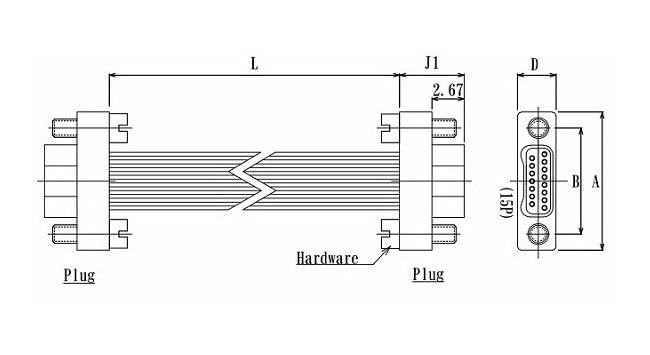

The Nano Dual Row Connector with Insulated Wire, manufactured by JCC, is a compact and high-performance solution designed for reliable contact in demanding conditions like vibration and thermal shock. With a contact pitch 1/4 of Dsub, this connector is ideal for applications requiring small size, light weight, and space-saving features. Available in 9, 15, 21, 31, 37, and 51 pins for double-row types, this connector is crafted with precision machining for durability. Compliant with MIL-DTL-32139 standards, it is suitable for aviation, electronics equipment, medical devices, satellites, and more.
Product Specifications
Additional Information
We also manufacture products that comply with MIL-DTL-32139 standards.Also supports customer-specific customized products.Please contact us for right angle.
Application
Aircraft | Aviation Equipment | Electronics Equipment | Etc. | Measurement Equipment | Medical Equipment | Missile | Mobile Precision Device | Satellite | Small Drive Equipment
Materials Encapsulant
Epoxy Resin
Materials Insulator
Thermoplastic
Materials Plug Pin
Copper Alloy, Au plating over Ni
Materials Shell
Aluminum Alloy
Materials Socket Pin
Copper Alloy, Au plating over Ni
Specifications Contact Type
Plug to Plug
Specifications Current Rating
1 A
Specifications Dielectric Withstanding Alternating Current Ac Vo
100 V
Specifications High Temperature Range
-55 to +200 ºC
Specifications Maximum Contact Resistance
71 mΩ
Specifications Minimum Insulation Resistance At 100 Volt V Direc
5,000 mΩ
Specifications Minimum Mating Durability
200 cycles
Specifications Number Of Pins
9 | 15 | 21 | 31 | 37 | 51
Specifications Pitch
0.635 mm | 0.025 in
Specifications Standard Temperature Range
-55 to +150 ºC
