Nano Super Air Nozzle 1110-PEEK-NPT

Name: Nano Super Air Nozzle 1110-PEEK-NPT
Brand: Exair LLC
SKU: AIR-edf711
Price: 79.99 USD
Availability: OutOfStock

SKU:AIR-edf711

EXAIR's Nano Super Air Nozzle: focused airflow, low noise, chemical resistance, OSHA compliant

$79.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

Ideal for precise airflow applications, the Nano Super Air Nozzle 1110-PEEK-NPT by EXAIR delivers a highly focused blast of air with a low noise level of 75 dBA. Made of Polyetheretherketone (PEEK), it offers chemical resistance and complies with OSHA noise and pressure requirements. With optimized air consumption of 8.3 SCFM, this compact and efficient air nozzle is suitable for various tasks like Part Cleaning, Cooling, and Drying, ensuring improved production and safety.

Product Specifications

Specifications Advantages

Specifications Air Consumption

8.3 SCFM | 235 SLPM

Specifications Applications

Specifications Force

8.1 oz | 230 g

Specifications How Air Nozzles Work

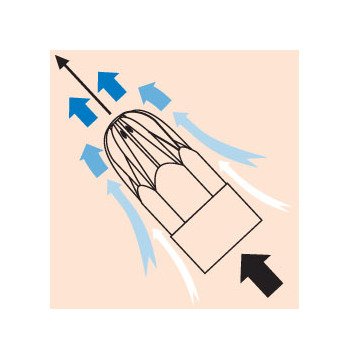

Air Nozzles use the Coanda effect to amplify compressed air flow up to 25 times or more. As illustrated on the right, compressed air (black arrows) is ejected through a series of nozzles on the outer perimeter. As the air travels along the outer wall of the nozzle, surrounding air (blue arrows) is entrained into the stream. The airstream that results is a high volume, high velocity blast of air at minimal consumption. The air is always ejected so it can vent safely, well below OSHA dead end pressure requirements, should the nozzle end be blocked.

Specifications Inlet

1/8 MNPT

Specifications Material

Polyetheretherketone (PEEK) (Plastic)

Specifications Note

Force measured at 12" (305 mm) from target

Specifications Pressure

80 psig | 5.5 bar

Specifications Selecting The Right Air Nozzle

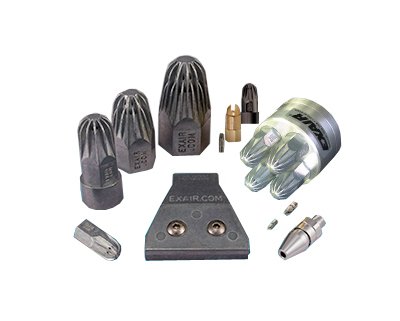

EXAIR manufactures a wide selection of Air Nozzles and Jets, which are divided into two groups. The first group includes Air Nozzles and Jets that deliver force up to 22 ounces (624 grams) and are suitable for most applications. The second group includes Air Nozzles that produce high force up to 23 lbs (10.43 kg) where additional reach and force are required.Type 303 Stainless Steel - high temperatures and corrosive environments. Max temp 800°F (426°C)Type 316 Stainless Steel - high temperatures, corrosive environments, and mechanical wear. Max temp 1000°F (538°C)Brass - general purpose applications. Max temp 400°F (204°C)Zinc Aluminum Alloy - general purpose applications. Max temp 250°F (121°C)PEEK - replaces metals in harsh environments. Offers chemical resistance, non-marring. Max temp 320°F (160°C)

Specifications Sound Level

75 dBA

Nano Super Air Nozzle 1110-PEEK-NPT
