NAS1435K Series 1-1/2 Inch (in) Dimension A Strap Fork End

NAS1435K Series 1-1/2 Inch (in) Dimension A Strap Fork End

NAS-a483c2

N/A

$49.99
$49.99
Sale

Initiate Order

NAS1435K Series 1-1/2 Inch (in) Dimension A Strap Fork End

NAS1435K Series 1-1/2 Inch (in) Dimension A Strap Fork End

$49.99

Quantity: 1

Claim Your Seller Account

NAS1435K Series 1-1/2 Inch (in) Dimension A Strap Fork End

NAS1435K Series 1-1/2 Inch (in) Dimension A Strap Fork End

$49.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

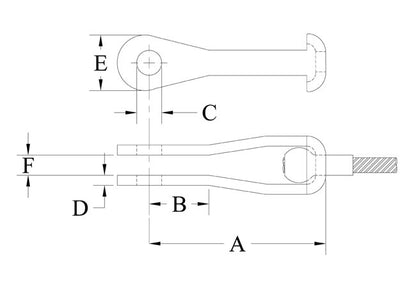

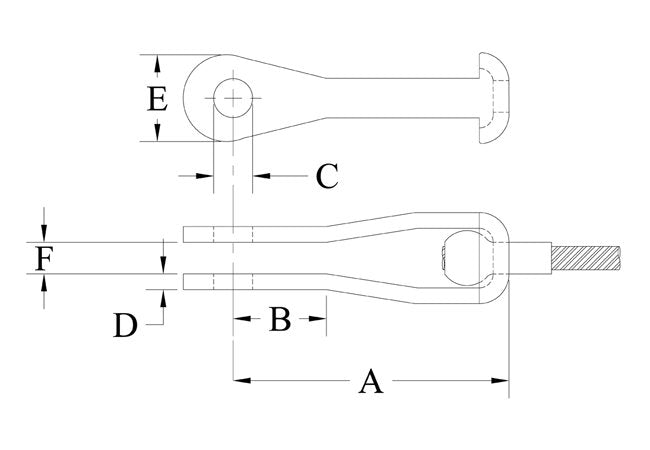

Product Specifications

Specifications Cable Diameter
3/32 in
Specifications Dimension A
1-1/2 in
Specifications Dimension B
0.616 in
Specifications Dimension C
0.188 in
Specifications Dimension D
0.049 in
Specifications Dimension E
7/16 in
Specifications Dimension F
0.108 in
