NBI Series 1/8 Inch (in) Female National Pipe Thread (FNPT) Polypropylene Pressure Indicator

Name: NBI Series 1/8 Inch (in) Female National Pipe Thread (FNPT) Polypropylene Pressure Indicator
Brand: Pneuline Supply, Inc.
SKU: PRE-084bd7
Price: 49.99 USD
Availability: OutOfStock

SKU:PRE-084bd7

N/A

$49.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

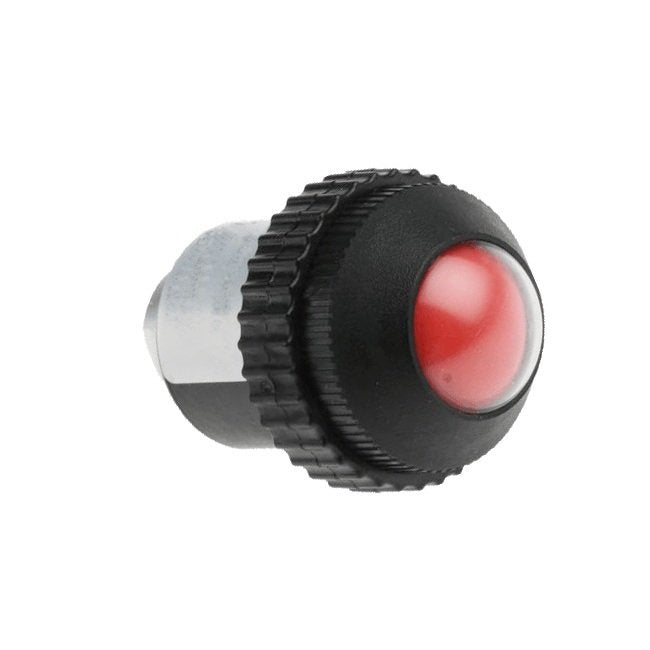

Panel mount pressure indicator equipped with a piston/diaphragm assembly that compresses a spring that rotates a colored indicator ball. When full actuation is reached, the ball rotates fully, changing the indicator color. The colors available are black with red, green and yellow, and red with green. The port threads are UNF 10-32 and male and female 1/8" NPT threads. The UNF port comes with an adapter for use with 1/16" ID tubing. The maximum pressure for the UNF port is 15 psi, for the female NPT it is 125 psi and for the male NPT port is 150 psi. The working temperature range is 35ºF to 150ºF. These indicators are made with either an Acetal or Polypropylene body.

Product Specifications

Note

If you do not see exactly what you are looking for, please contact our sales department.

Technical Specs Inlet Port Size

1/8 in

Technical Specs Inlet Port Thread Type

National Pipe Thread (NPT)

Technical Specs Material

Acetal | Polypropylene

Technical Specs Series

NBI

Technical Specs Thread Size

10-32

Technical Specs Thread Type

Unified National Fine (UNF)

Technical Specs Working Temperature

35 to 150 ºF
